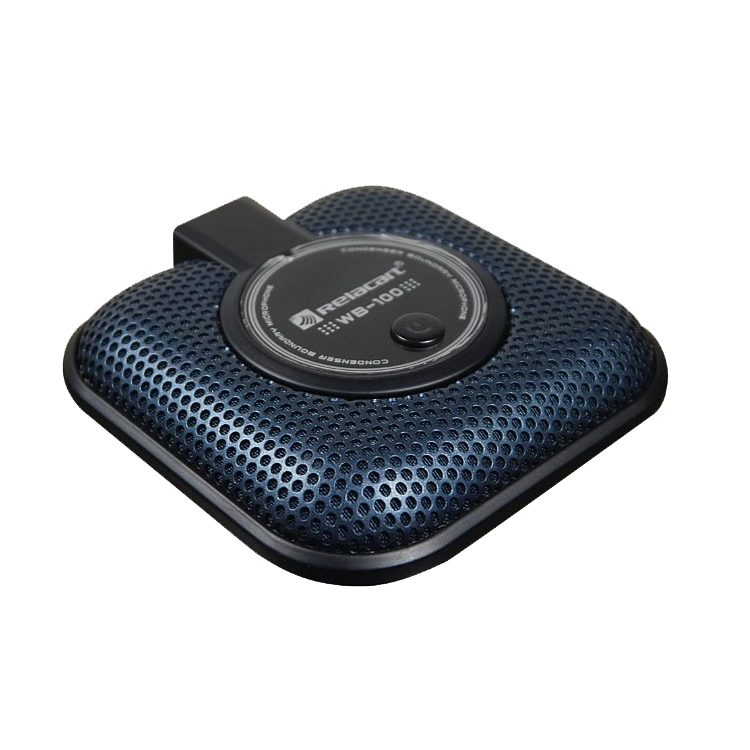

WB-100 Relacart
cardioid condenser wired boundary microphone
Gallery:
Details & Specifications:
Home / Audio Equipment / Microphones / WB-100 wired boundary microphone
Element |
Fixed-charge back plate permanently polarized condenser |
Polar Pattern |
Half-cardioid (120° above mounting surface) |
Frequency Response |
50-17,000 Hz |
Low Frequency Roll-Off |
80 Hz, 18 dB/octave |
Sensitivity |
-36 dB (15 mV) re 1V at 1 Pa |
Output Impedance |
200Ω (ohms) |
Phantom Power |
11~52V DC, 4 mA typical |
The WB-100 is cardioid condenser wired boundary microphone with ultra-quiet electronic switch can be set to any of four operating modes such as touch - mute, touch - on, touch-to-talk and touch-to-mute. It is designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations. The microphone switch can control or be controlled by external automatic central control system or other devices.
● Semi-cardioid polar pattern condenser boundary microphone.
● Ultra-quiet electronic switch can be set to any of four operating modes: "touch - mute”, “touch - on”, "touch-to-talk" and "touch-to-mute".
● External LED control allows for accurate depiction of the live status
● The microphone switch can control or be controlled by external automatic central control system or other devices.
● Superior off-axis rejection for maximum gain before feedback.
● Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone.
● The WB-100 can be powered from any 11V to 52V DC phantom power source.
● Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
