UR-220S
Single channel Wireless Microphone
Gallery:
Details & Specifications:
Home / Audio Equipment / Microphones / UR-220S Single channel Wireless Microphone
Main Frame Size |
EIA STANDARD 1/2 U |
Channels |
Single Channel |
Frequency Stability |
±0.0005%, Phase Lock Loop frequency control |
Carrier Frequency Range |
UHF 823-832+863-865 MHz |
Modulation Mode |
FM |
Operating Range |
60M typical ( in open space) |
Oscillation |
PLL synthesized |
Sensitivity |
6dBμV, S/N>60dB at 25 deviation |
Band Width |
16MHz |
Max.Deviation Range |
±45KHz |
S/N |
>105dB |
Frequency response |
45Hz~18KHz±1dB |
Power Supply |
DC 12V / 500 mA |
Weight |
1.2 KG |
Dimensions |
210(W)X 43(H) X 206(D) |
Output Connector |
XLR balanced & 6.3φ phone jack unbalanced |
- Metal materials EIA-standard 1/2 - rack receiver chassis, antenna diversity.
- The transmitters offer durable, magnesium bodies, soft-touch controls.
- Bright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other working status.
- Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.
- Press [IR] button to upload automatically the receiver frequency to the transmitter.
- PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
- Each channel 32 selectable frequencies, dual- channel 64 selectable frequencies.
Battery life is twice as common, up to 15 hours.
- Designed for use on professional tours, muti-functional halls, meeting room, concert halls and houses of worship. Stable functions, reliable and flexible performance, easy to install.
Type |
True diversity, 1 channel |
Directivity pattern |
UHF 823-832 MHz and 863-865 MHz |
Power supply |
11 MHz |
Current consumption |
90 10 frequency banks with up to 10 preset frequencies each |
Battery life |
± 45 kHz |
Dimensions |
± 0.0005 % |
Weight |
>105 dB |

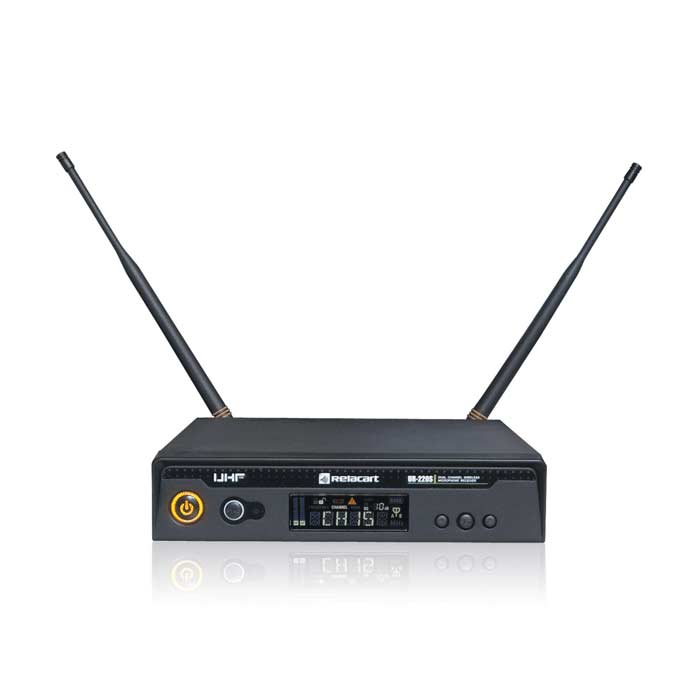

Receiver:

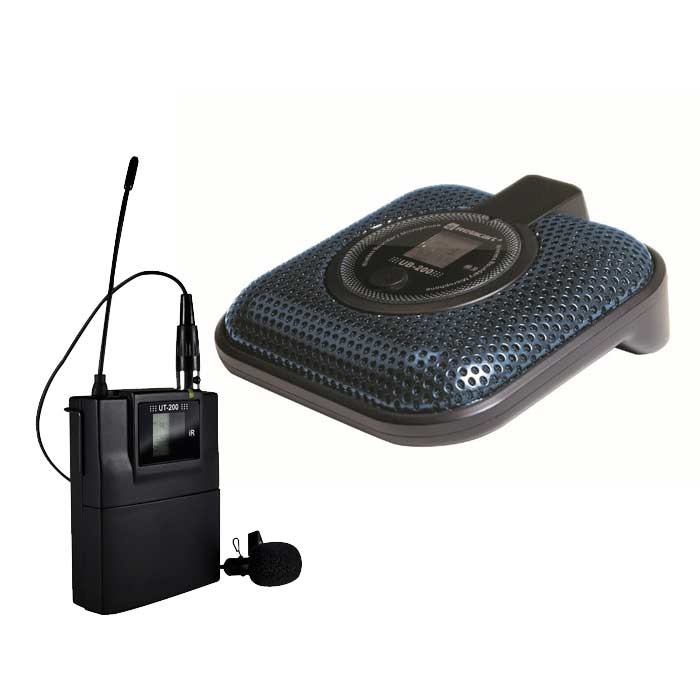

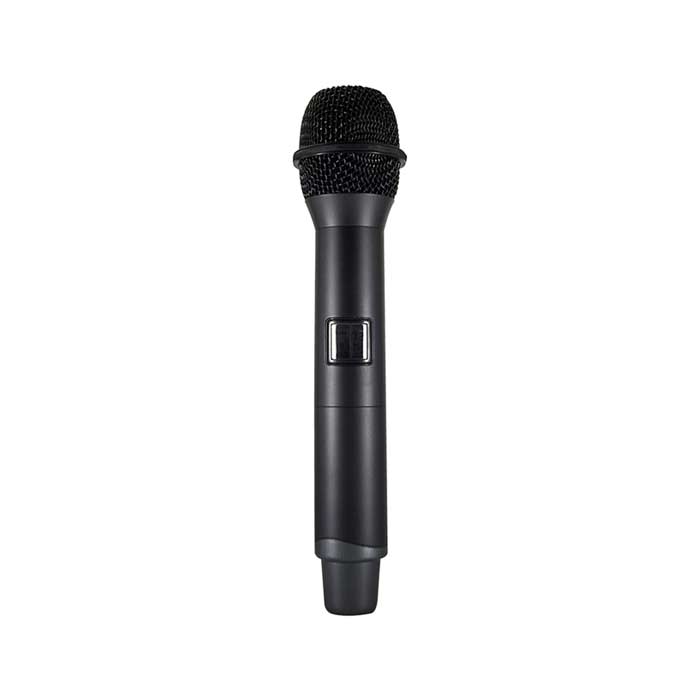

Microphone:
