MAUI 5 MIX
ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH
ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH
| Product number: | LDMAUI5 |
| Product type: | PA system |
| Type: | active |
| Colour: | black |
| Max. SPL (continuous): | 114dB |
| Max. SPL (peak): | 120dB |
| Frequency response: | 50 - 20000Hz |
| Dispersion (H x V): | 120° x 20° |
| Overall height: | 1985mm |
| Weight: | 11.3kg |
| Other features: | Bluetooth, 4 channel mixer, DSP-based signal processing |
| Woofer characteristics | |
| Low/mid driver dimensions: | 8" |
| Low/mid driver dimensions (mm): | 203.2mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 2" |
| Woofer voice coil (mm): | 50.8mm |
| Cabinet construction: | vented |
| Cabinet construction: | ABS plastic |
| Dimensions Subwoofer (W x H x D): | 305 x 405 x 395mm |
| Mid/Hi System | |
| Midrange size: | 4 x 3" |
| Midrange size: | 4 x 76.2mm |
| Midrange magnet: | Neodymium |
| Midrange brand: | Custom-made |
| Midrange voice coil: | 1" |
| Midrange voice coil: | 25.4 |
| Mid/Hi system impedance: | 4Ohm(s) |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Custom-made multipin |
| Cabinet construction mid/high: | Closed |
| Mid/Hi system cabinet material: | ABS plastic |
| Mid/Hi system width: | 82mm |
| Mid/Hi system height: | 535mm |
| Mid/Hi system depth: | 105mm |
| Amplifier Module (integrated in Subwoofer) | |
| Amplifier: | Class D |
| Amplifier Output System (RMS): | 200W |
| Amplifier Output System (Peak): | 800W |
| Protection circuits: | over-current, short circuit, DSP-based multiband limiter, thermal overload |
| Cooling: | Convection |

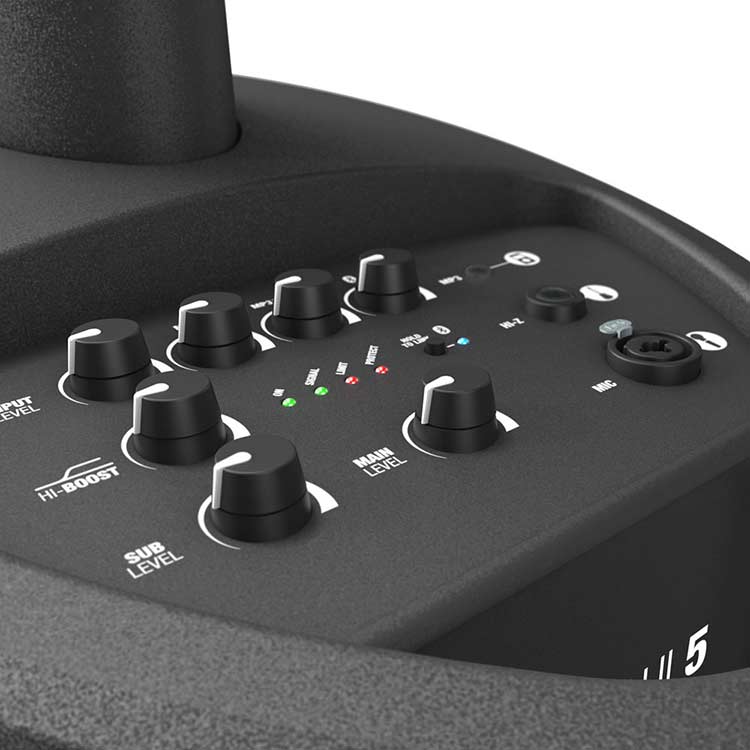

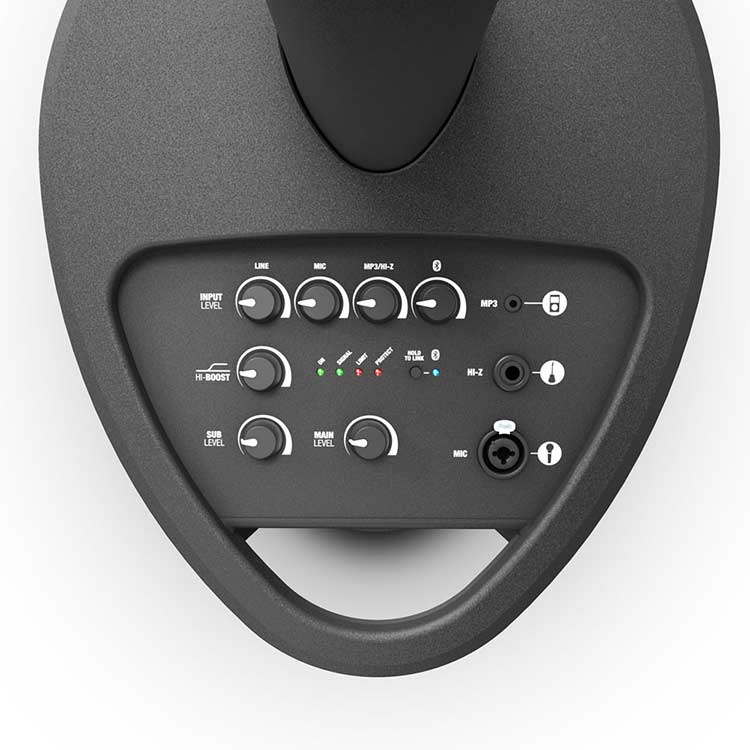

| Controls: | MP3 / Hi-Z Level, sub level, Mic Level, BT Pairing, Line Level, BT level, Main Level |
| Indicators: | signal, protect (protection circuit engaged), on, limit |
| Operating voltage: | Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz |

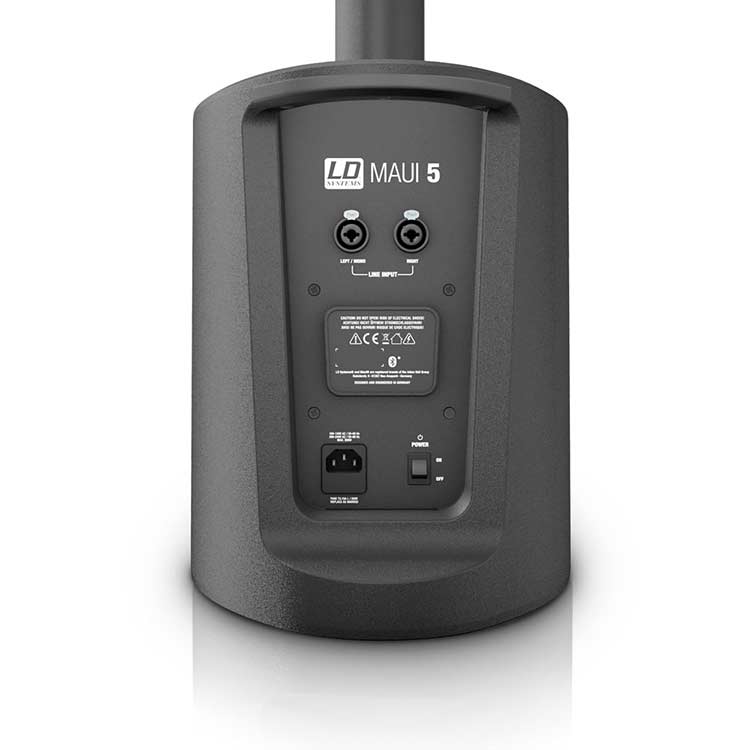

| Line inputs: | 2 x stereo |
| Line input connectors | RCA, 6.3 mm Jack, XLR |
| Mic inputs: | 1, XLR, 6.3 mm Jack |
| MP3 inputs: | 1 |
| MP3 input connectors: | 3.5 mm jack |
| Hi-Z inputs: | 1 |
| Hi-Z input connectors: | 6.3 mm Jack |
| Loudspeaker outputs: | 1 |
| Speaker output connections: | Custom-made multipin |
MAUI 5 MIX
ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH

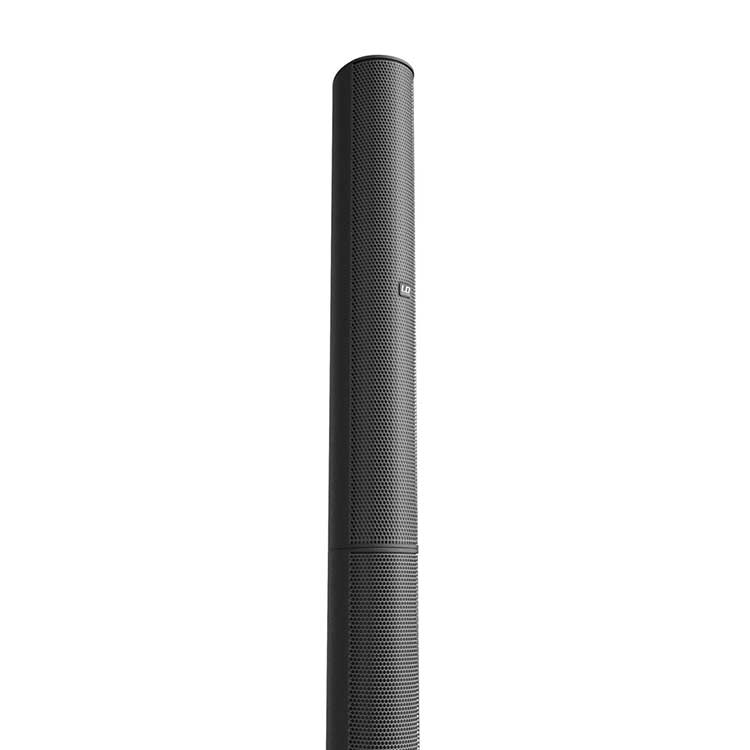

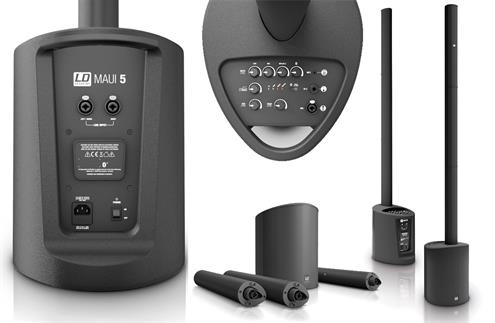

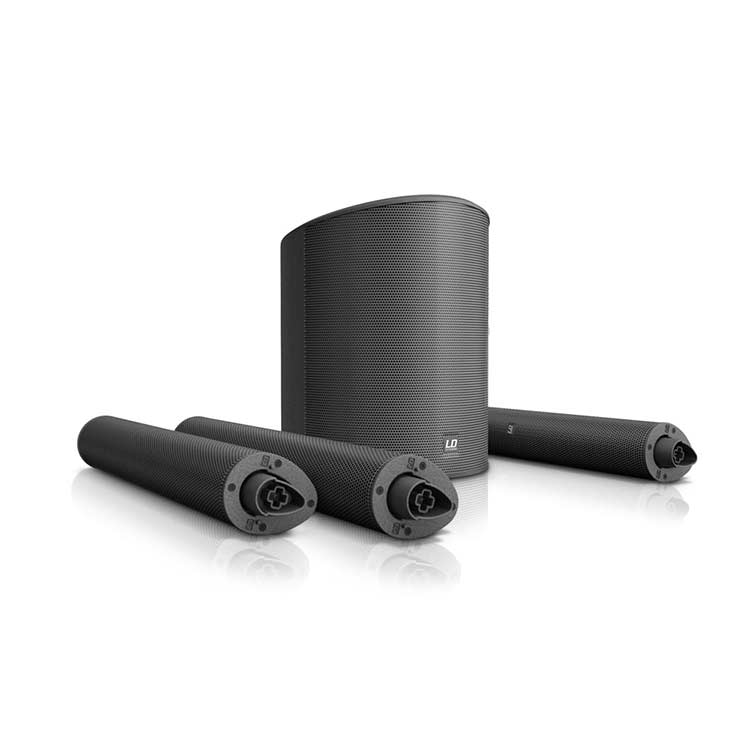

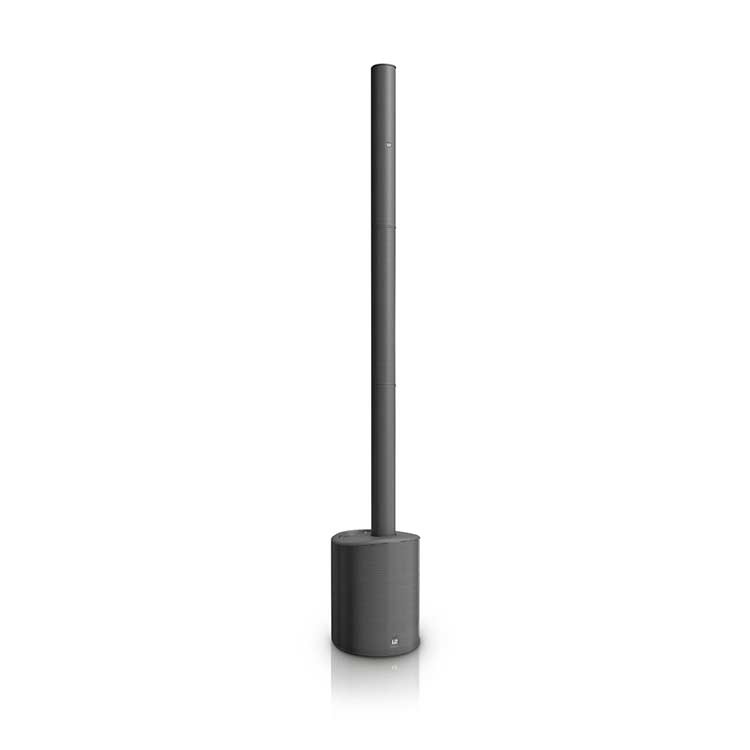

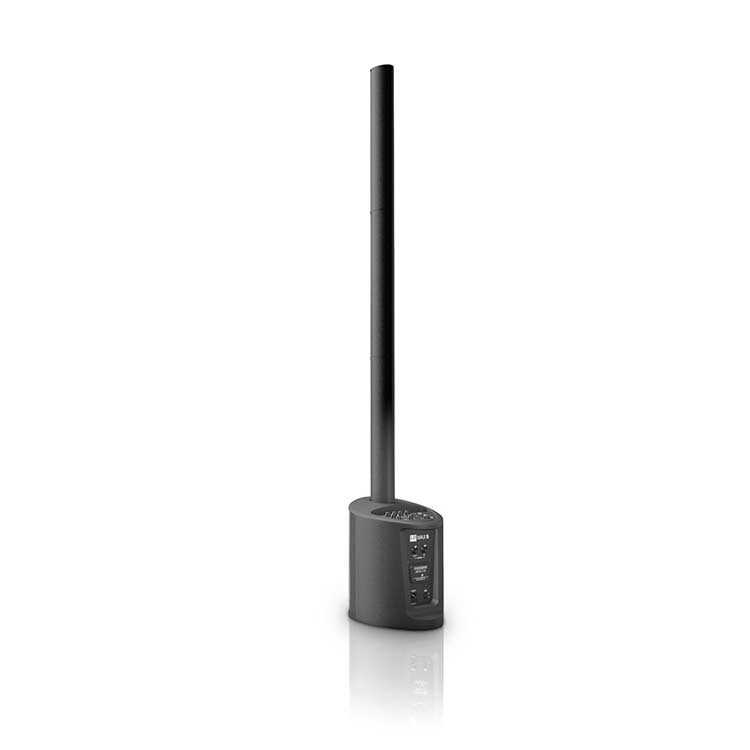

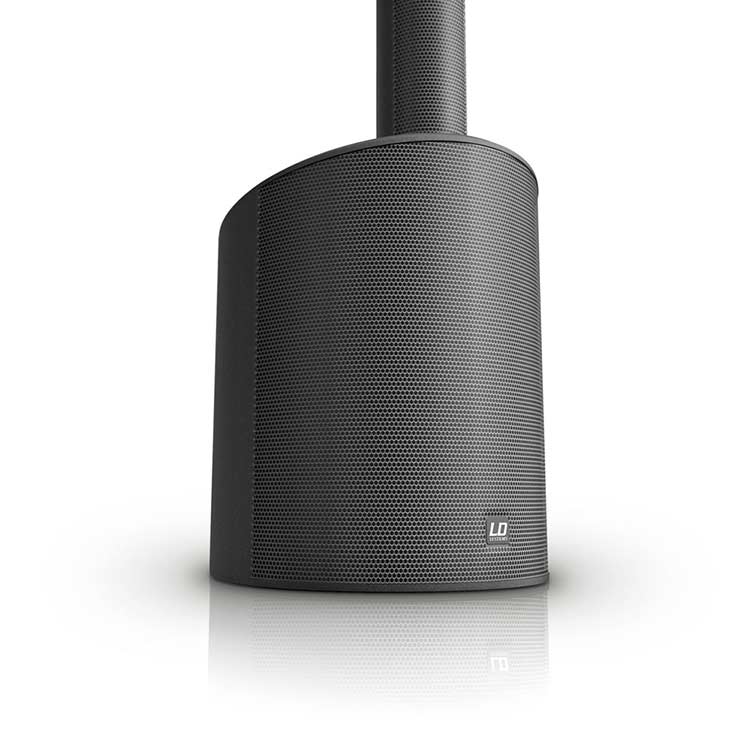

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.
The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.
ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH
The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.
The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.
