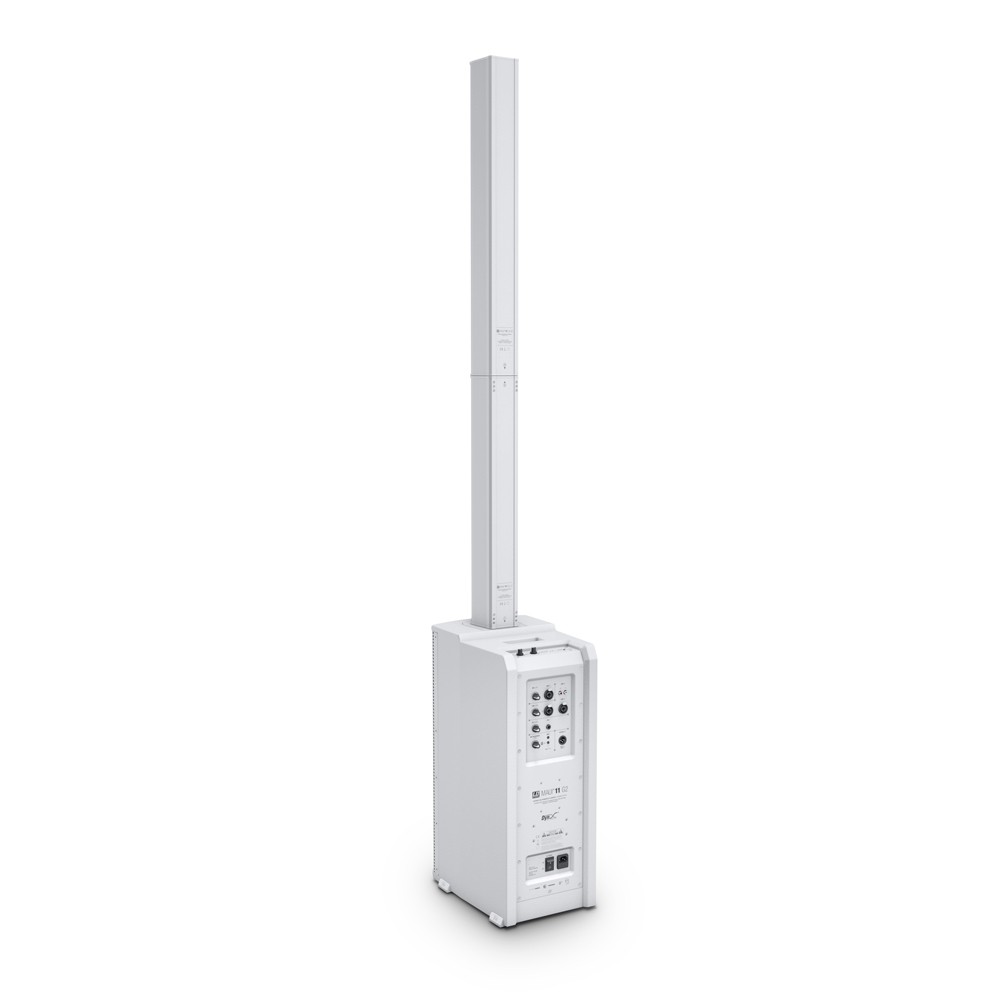

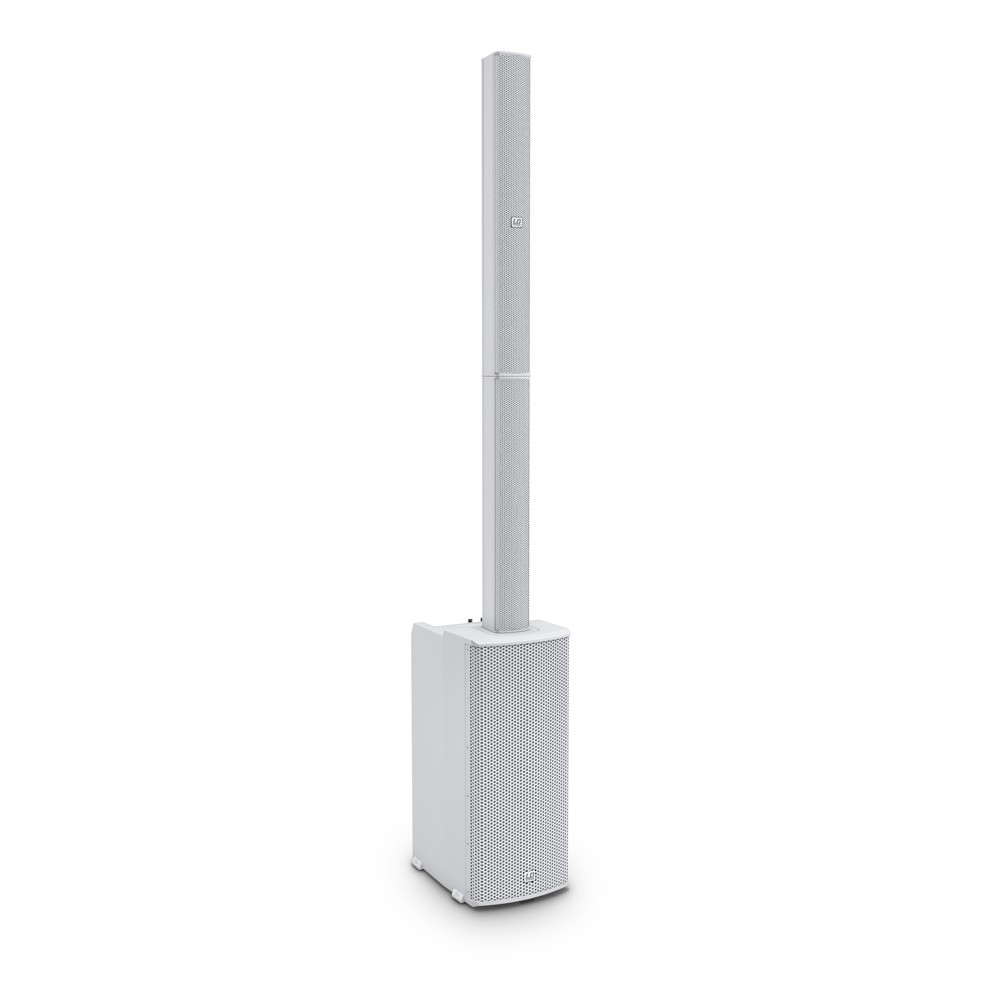

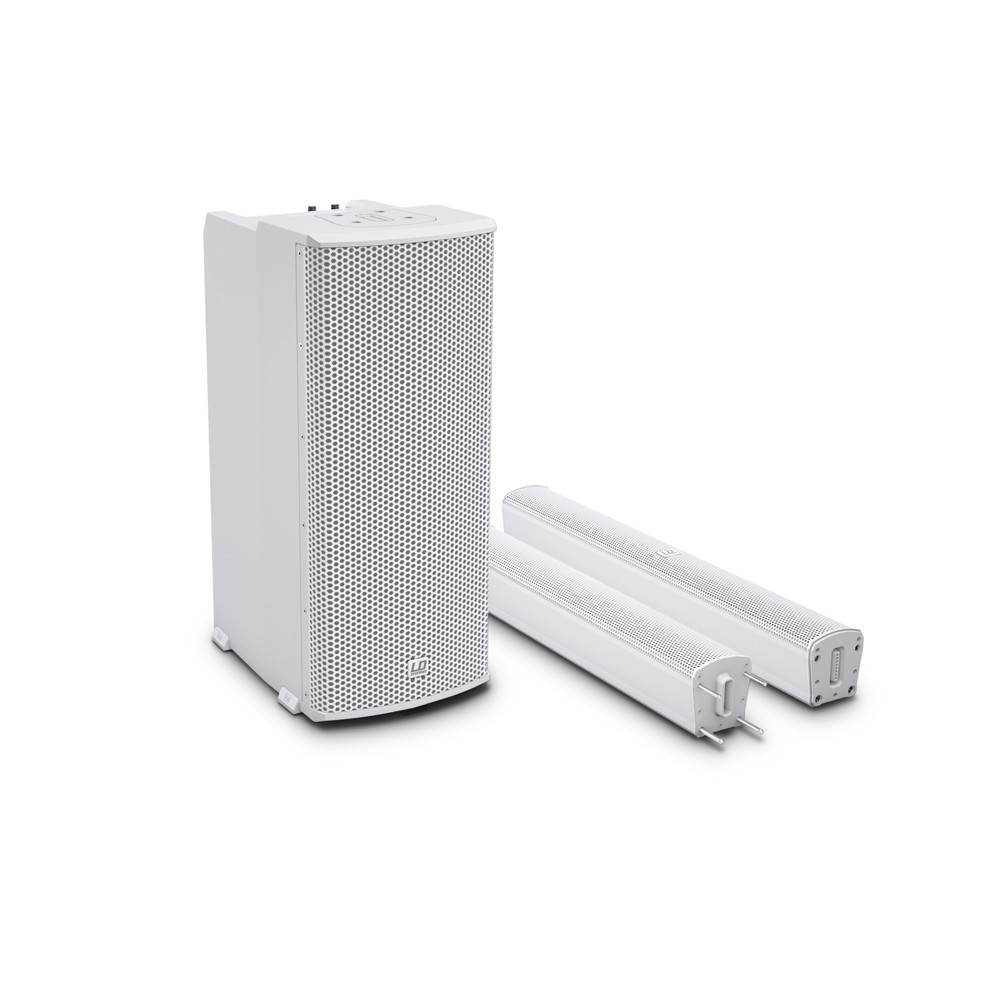

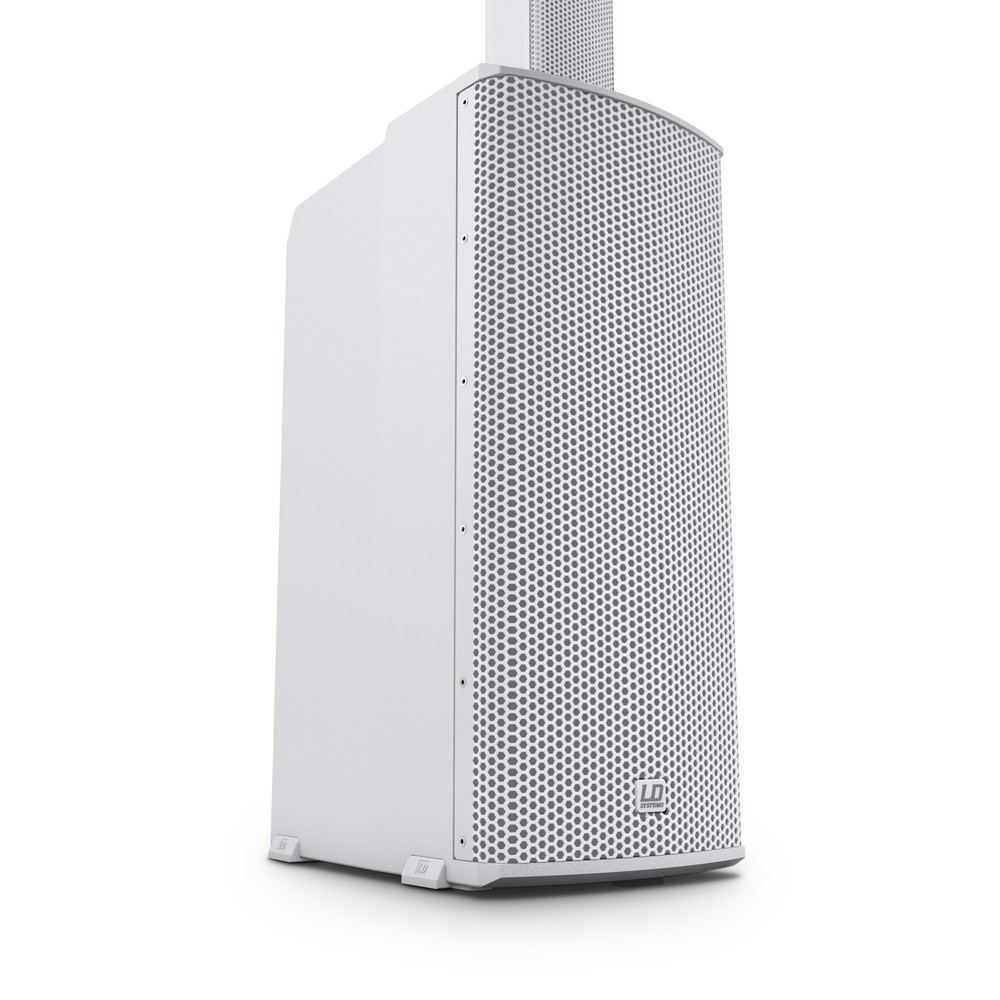

LD Systems - MAUI 11 G2 W
PORTABLE COLUMN PA SYSTEM WITH MIXER and BT
Gallery:

Price: 2850.00
Details & Specifications:

MAUI 11 G2 W
PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE

Product number: LDMAUI11G2W
Product type: PA system
Type: active
Colour: white
Max. SPL (peak): 124dB
Frequency response: 50 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 2030mm
Weight: 24,9kg

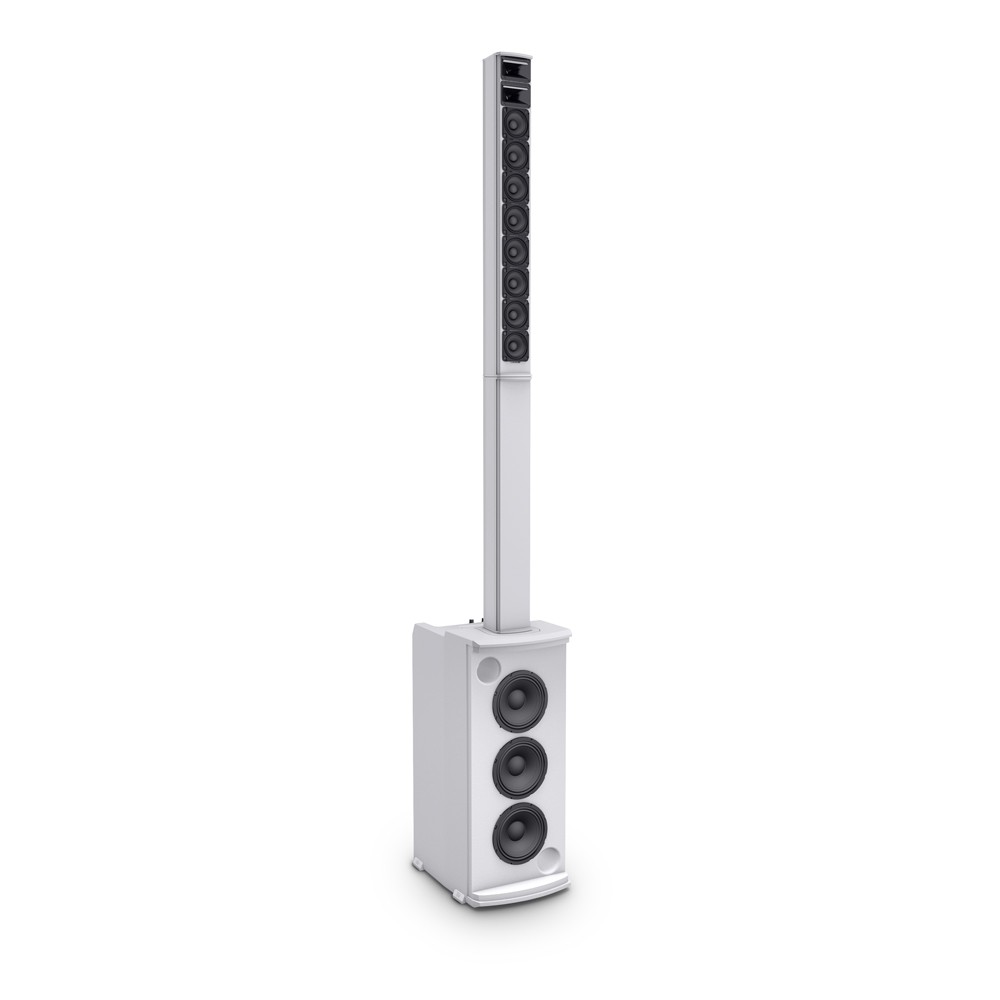

Woofer characteristics
Low/mid driver dimensions: 3 x 6.5"
Woofer size: 3 x 165.1mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 1.5"
Woofer voice coil (mm): 38.1mm
Cabinet construction: vented
Cabinet construction: 15 mm Plywood
Cabinet surface: Texture Paint
Dimensions Subwoofer (W x H x D): 285 x 650 x 373mm
Subwoofer weight: 16,9kg

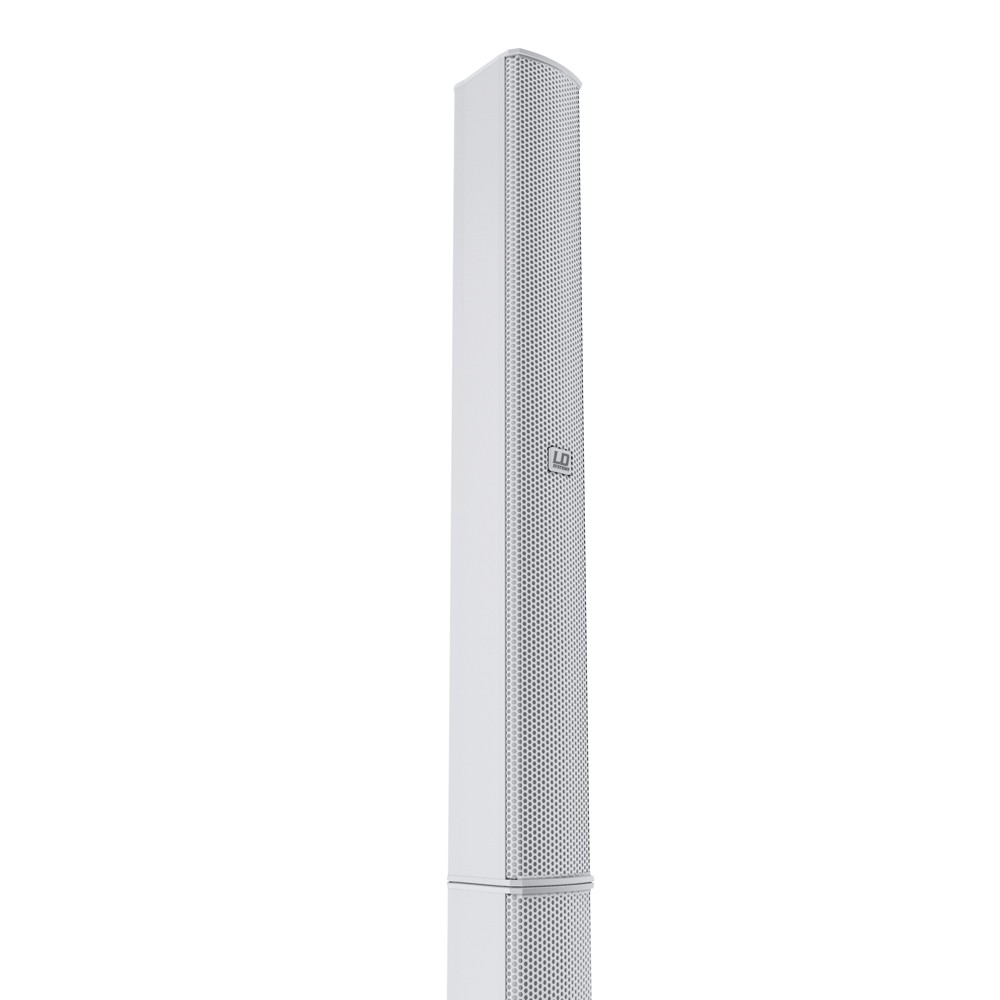

Mid/Hi System
Midrange size: 8 x 3"
Midrange size: 8 x 76.2mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4
Horn: Waveguide
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 96mm
Mid/Hi system height: 620 / 730mm
Mid/Hi system depth: 104mm
Mid/Hi system weight: 5.4 / 2.6kg

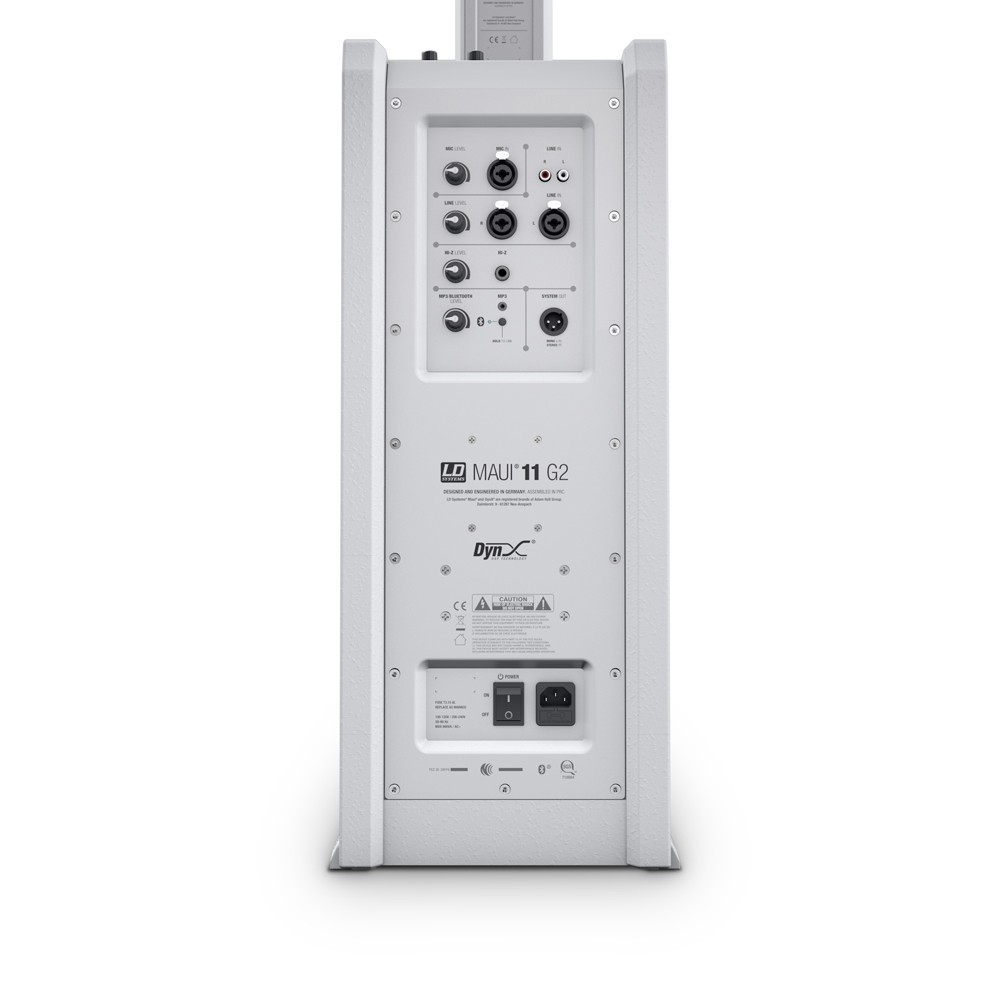

Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 500W
Amplifier Output System (Peak): 1000W
Protection circuits: DC protection, thermal overload, short circuit, Multiband limiter
Cooling: Convection
Operating Temperature: 0 - 40°C
Humidity Range: 10% to 80%, (non-condensing)

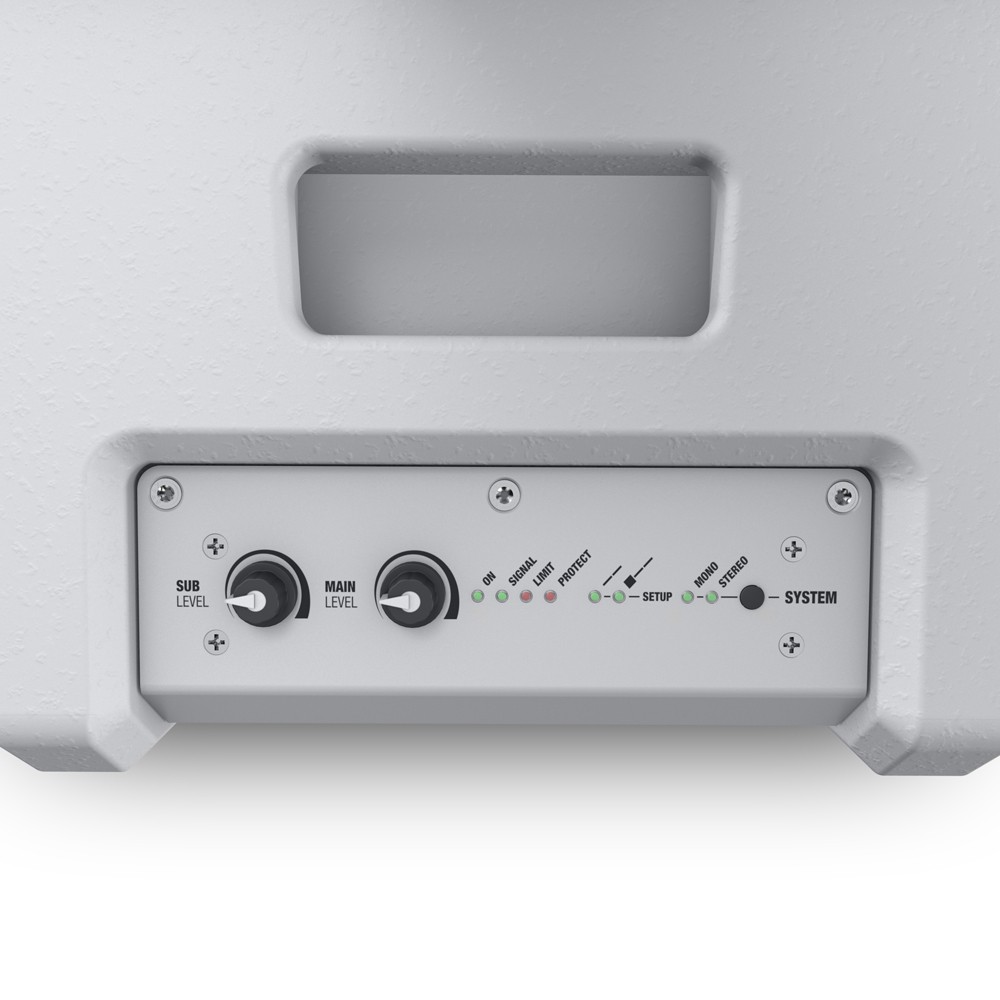

Controls: Mono/stereo switch, Main level, Sub level, Hi-Z Level, Line level, Power, Bluetooth switch,
MP3/Bluetooth Level
Indicators: On, Protect (protection circuit engaged), stereo, Setup, mono, Signal, Limit
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.: 0 / 11 / 600W

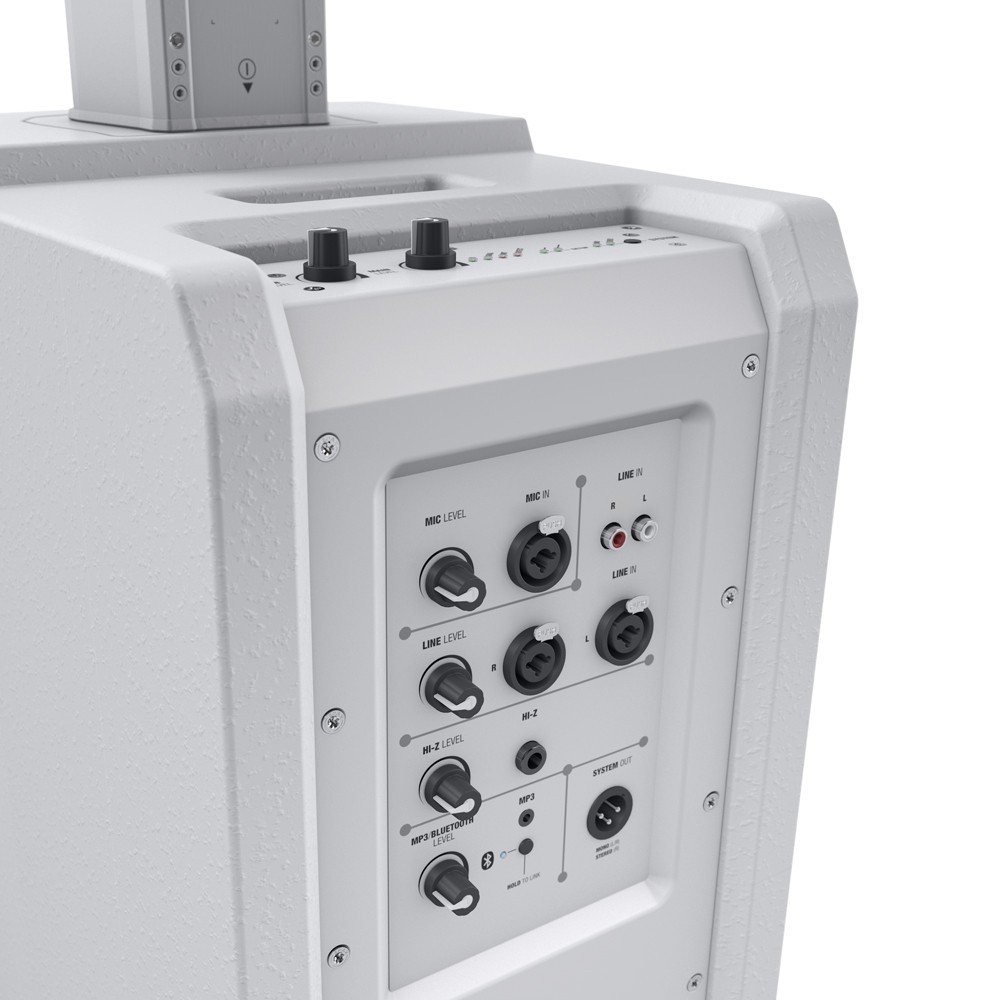

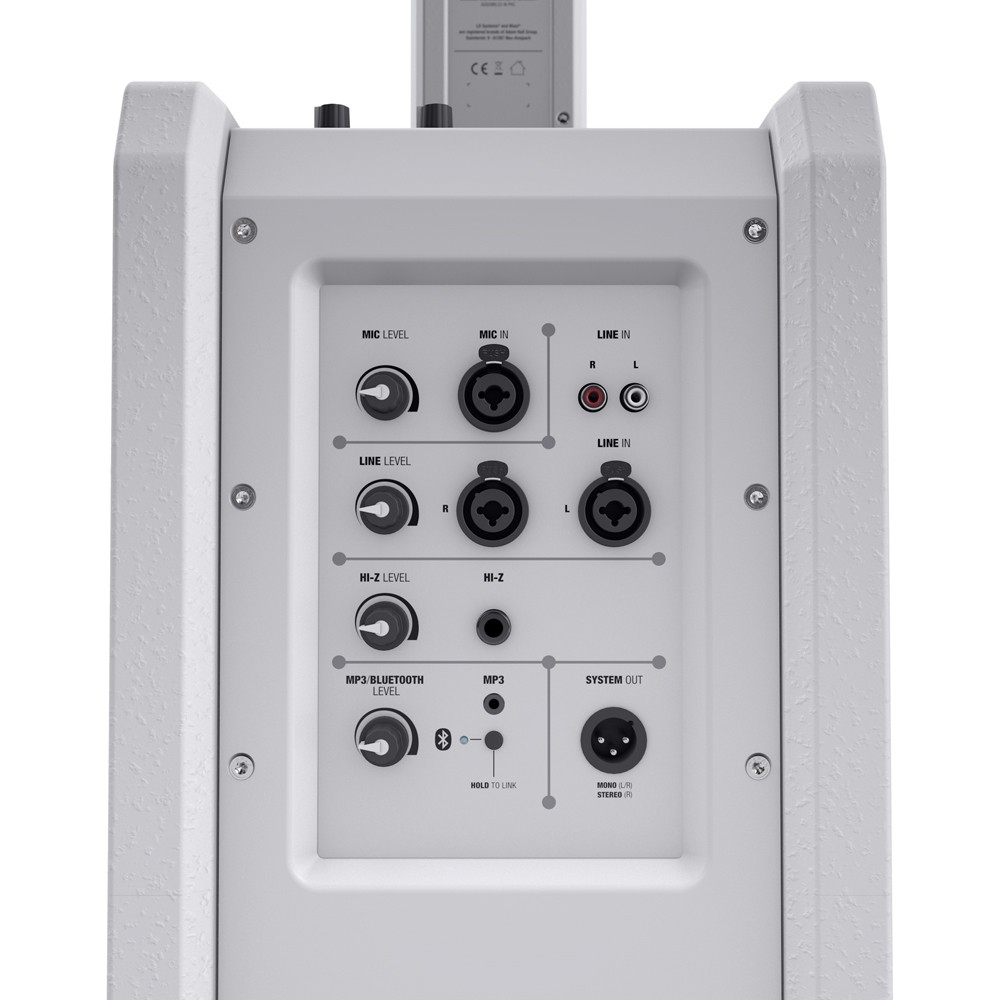

Line inputs: 2 x stereo
Line input connectors RCA, 6.3 mm Jack, XLR
Line outputs: 1 x direct out
Line output connectors: XLR
Mic inputs: 1, 6.3 mm Jack, XLR
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Speaker output connections: Custom-made multipin
