Power Dynamics PDW500MP3
PA Mixer Amplifier 500W/100V 6 Zones
Gallery:
Details & Specifications:
Home / Audio Equipment / PA_100V_Amplifiers / Power Dynamics PDW500MP3 PA Mixer Amplifier
Playback options |
BT streaming, FM radio, SD, USB |
Output power: Max / RMS |
500W / 400W |
Impedance |
100V, 16 Ohm, 4 Ohm, 70V, 8 Ohm |
Frequency response |
100Hz - 19.000Hz |
Signal-to-noise ratio |
>85dB Line / >80dB Mic |
Power supply |
100-240VAC 50/60Hz |
Dimensions |
310 x 420 x 95 mm (with rack ears: 480 mm) |
Weight |
9.9kg |
Accessories |

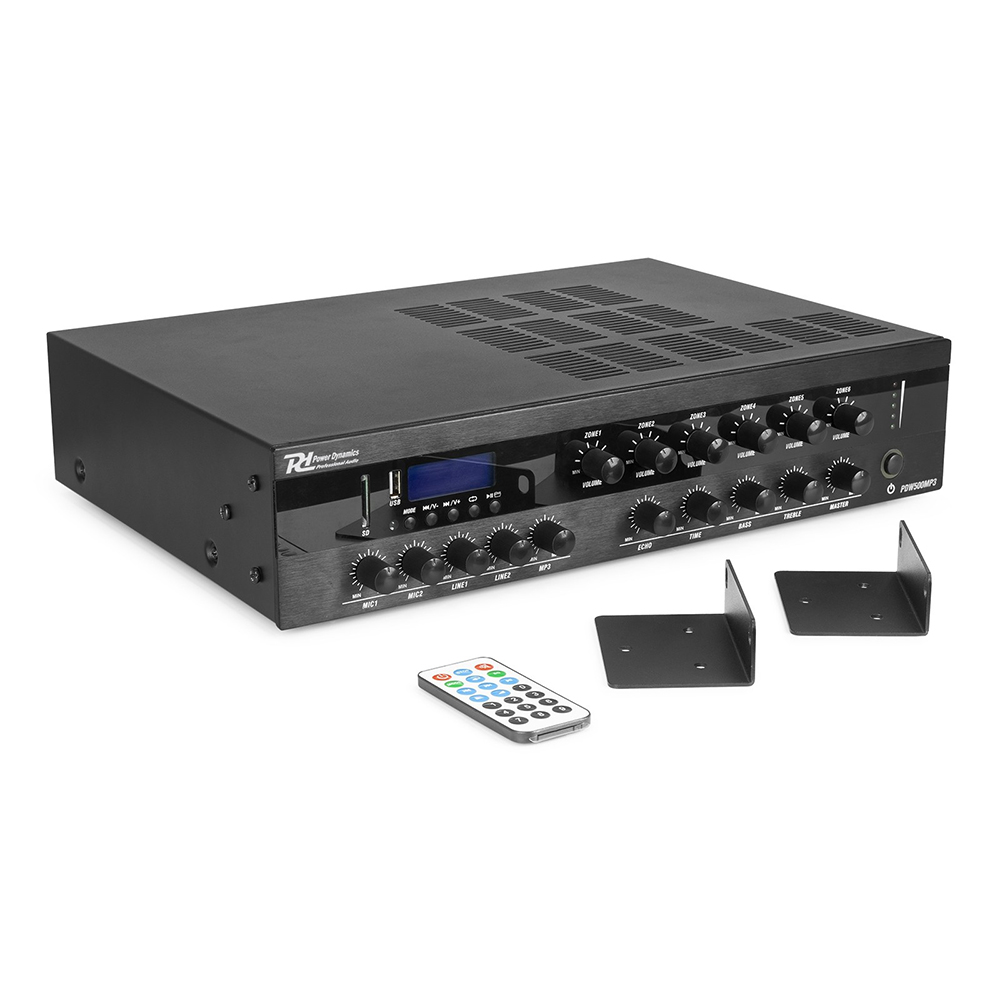

Mounting bracket, Power cable, Remote control |

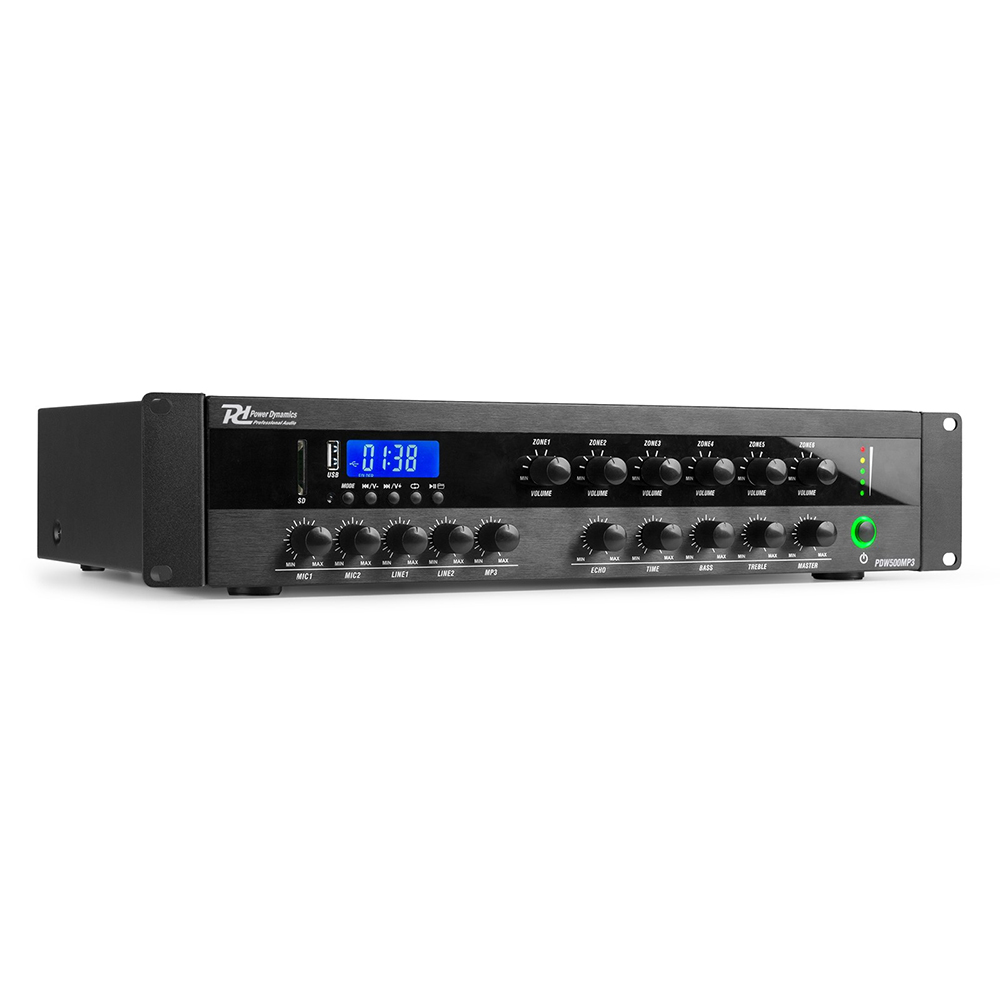

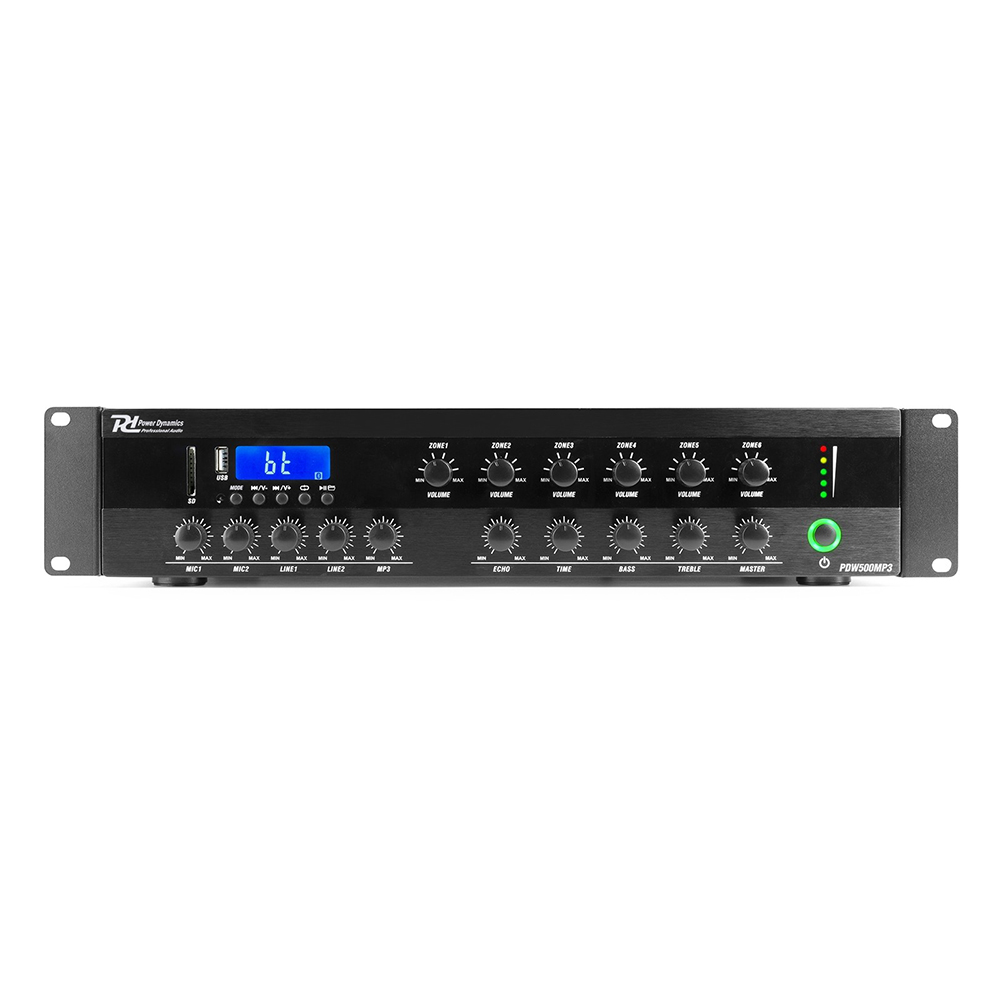

The PDW series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These fully featured, high power mixer amplifiers with 6 zone outputs are equipped with separate volume controls and features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver. All PDW amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping center or any other public space.
- PA amplifier with 6 zones and separate volume controls

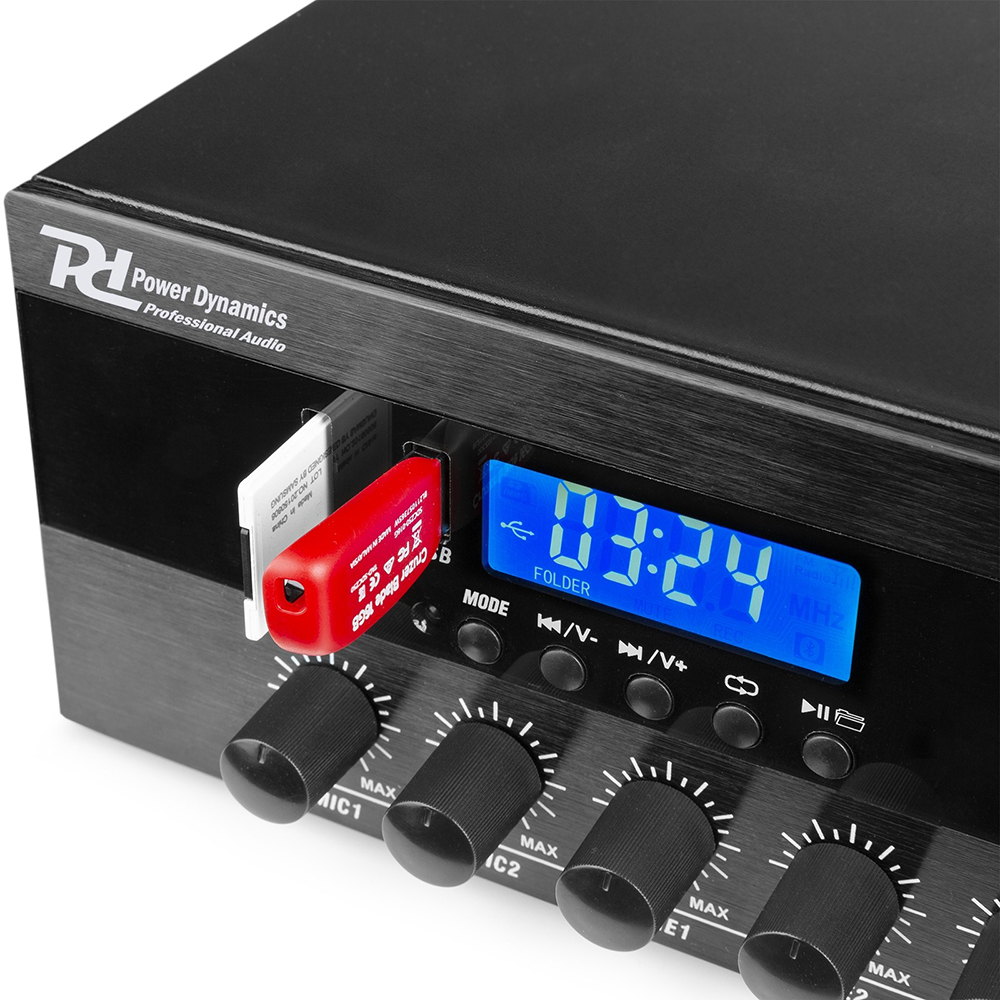

- Media player with FM Tuner, USB and SD slot
- BT receiver for audio streaming
- 500W Class-D amplifier

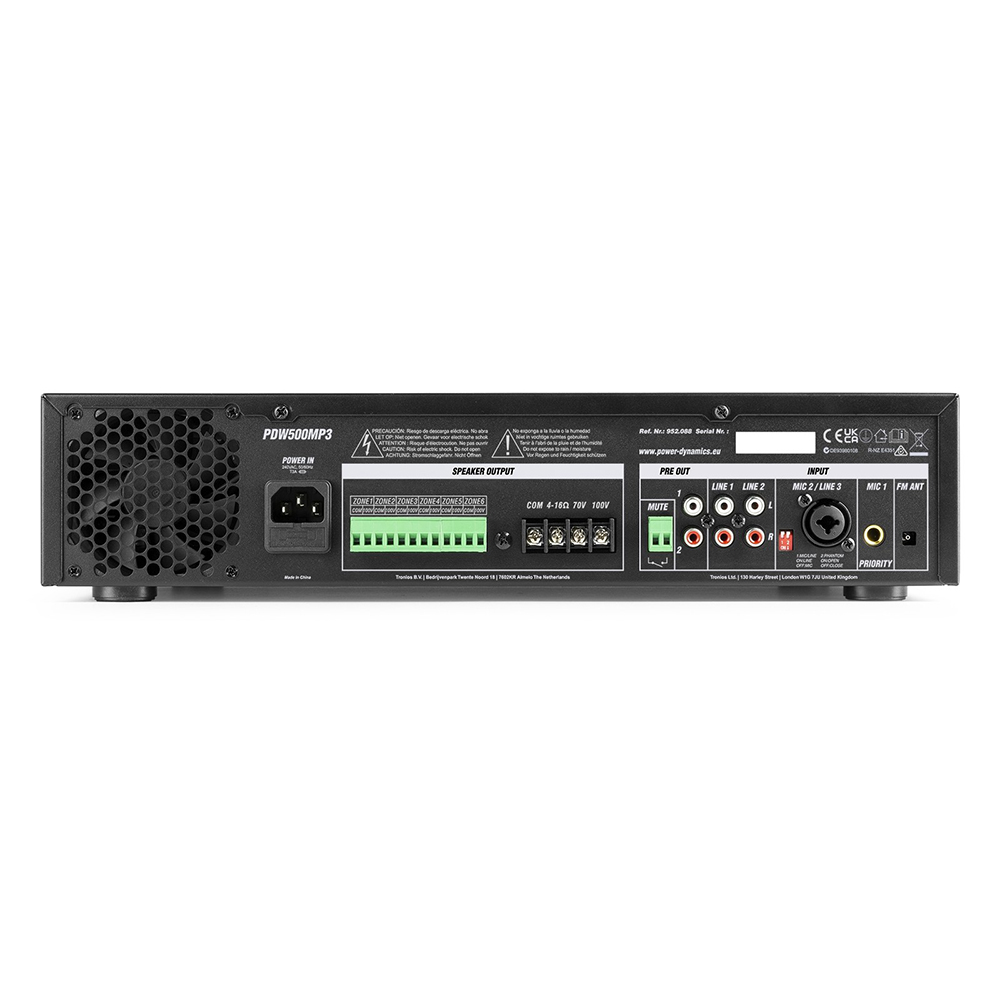

- 100V/70V or 16, 8, 4 Ohm
- Zone volume control
- Bass/Treble/Echo control
- Digital LCD display
- XLR microphone input with switchable phantom power (24V)
- 6.3 mm microphone input with priority
- 2x RCA line inputs and 1x RCA line output
- 19" rack mountable (2U)
