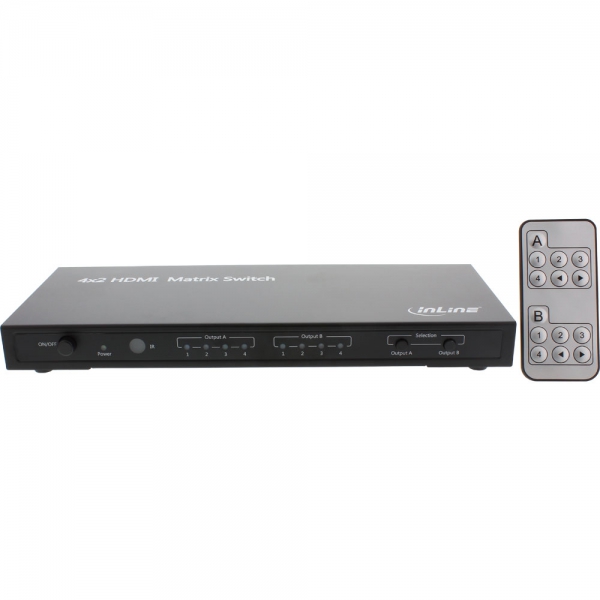

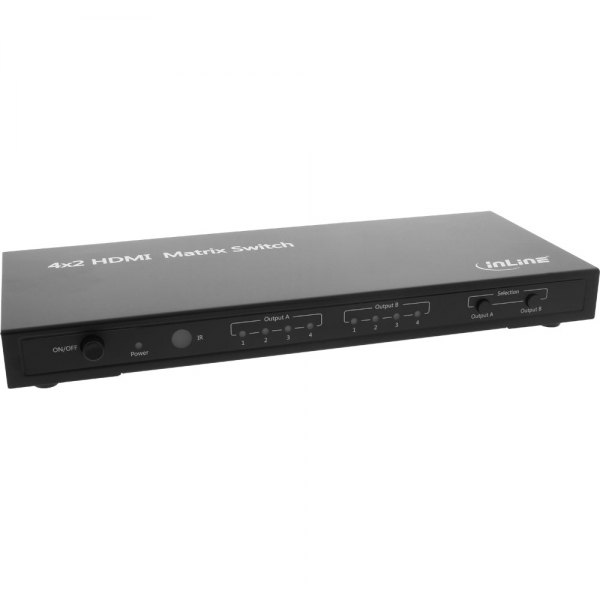

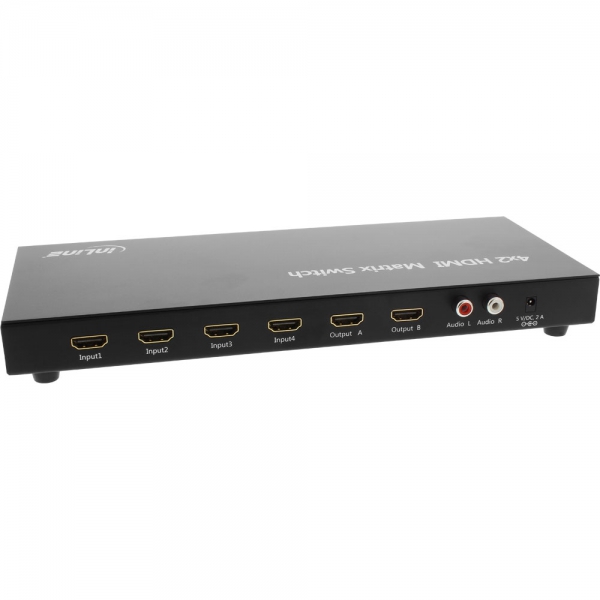

InLine® HDMI Matrix Switch, 4 Input ports to 2 Output ports
Gallery:
Price: 0.00 ₾
Details & Specifications:
 |
 |
 |
The InLine® HDMI MATRIX SWITCH conducts high-definition video in multiple resolutions of more up to 1080p and multi-channel digital audio from the four HDMI sources to two displays devices. Two outputs give you the choices of high-definition audio and video signals up to two displays. Any type of 4 to 2 matrix switch offers flexibility for existing integrated systems. This eliminates the constant effort change the sources to a display equipped with one input. Every source is accessible at al times from any display device with an IR remote control.
■HDMI 1.3b
■cable length max. 10m
■Video resolution: Max. 1080p (6.75 Gbit/s all channels)
■Cascadable: max. 3x without quality loss
■Bandwidth: 225 MHz / 2.25 Gbit/s
■12-bit per channel (36 bit all channel) for strong colors
■HDCP
■supports 3D up to 1080p
■Uncompressed audio files, such as LPCM
■Compressed Audio: DTS Digital, Dolby Digital (and Dolby True HD, including DTS-HD)
■cable length max. 10m
■Video resolution: Max. 1080p (6.75 Gbit/s all channels)
■Cascadable: max. 3x without quality loss
■Bandwidth: 225 MHz / 2.25 Gbit/s
■12-bit per channel (36 bit all channel) for strong colors
■HDCP
■supports 3D up to 1080p
■Uncompressed audio files, such as LPCM
■Compressed Audio: DTS Digital, Dolby Digital (and Dolby True HD, including DTS-HD)
Download Brochure
