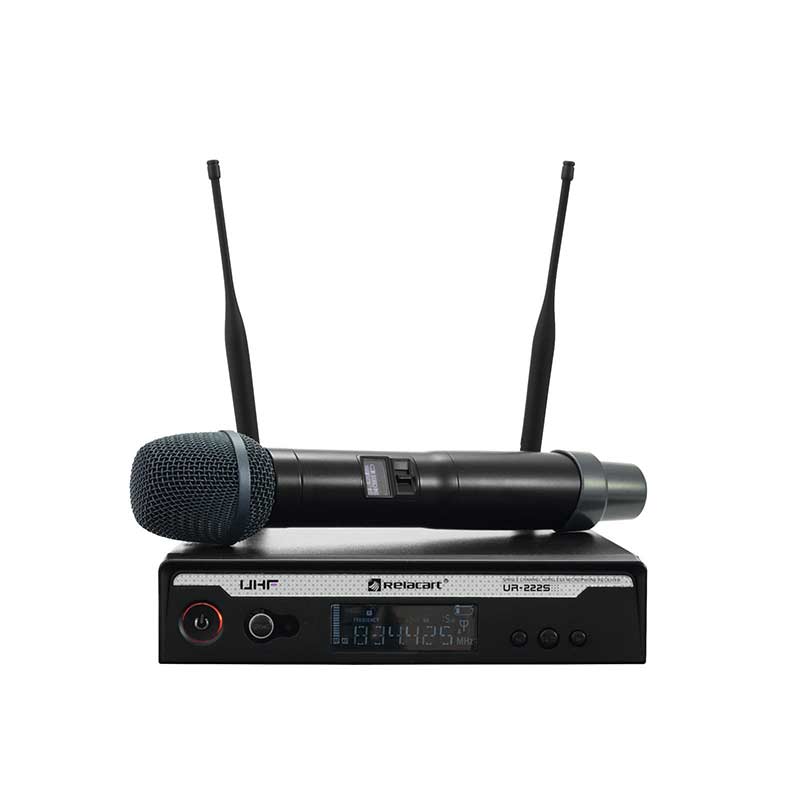

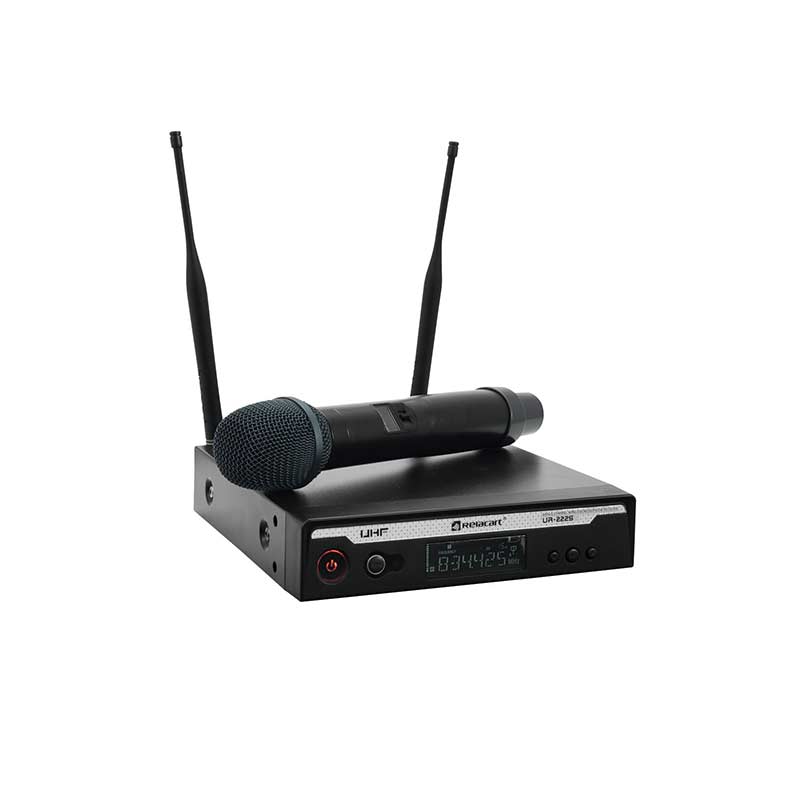

UR-222S
Single channel Wireless Microphone
Gallery:
Details & Specifications:
Home / Audio Equipment / Microphones / UR-222S Single channel Wireless Microphone
- Multifrequency wireless receiver with high-quality true diversity reception
- Dynamic hand-held microphone with ergonomic aluminum alloy housing and OLED display, applicable for touring
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot tone technology (PLL) for interference-free reception
- Operation range with line of sight approx. 80 meters
- Automatic frequency scan (AFS) finds interface-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency

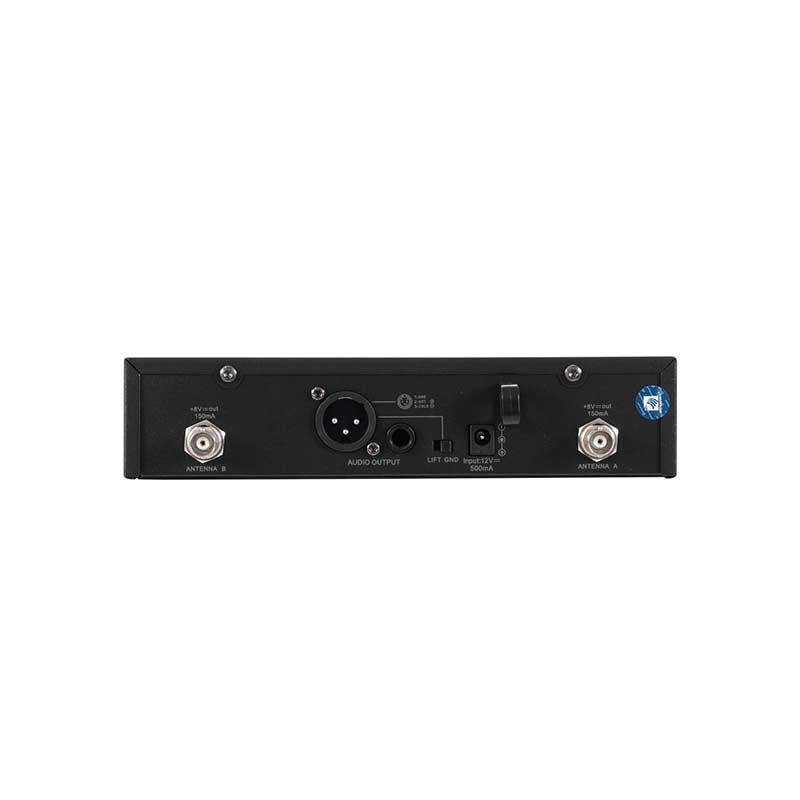

- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider

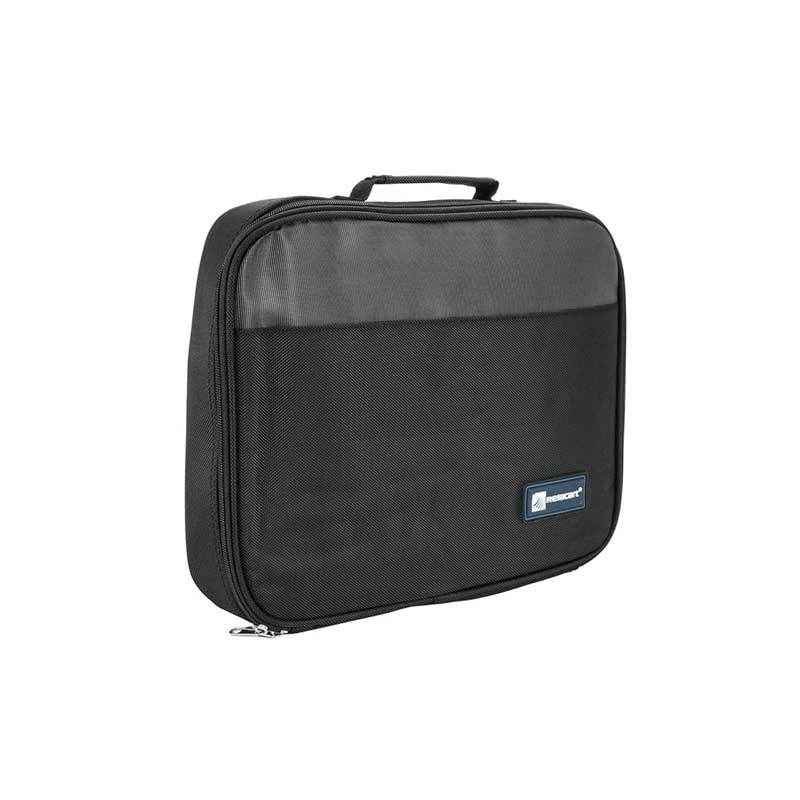

- Delivery includes practical transport bag with jack cable and power unit
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Microphone directly compatible with Shures SM58 capsule
- Matching pocket transmitter UT-222 optionally available
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
System |
True diversity, 1 channel |
Carrier Frequency Range |
UHF 823-832 MHz and 863-865 MHz |
Switching bandwidth |
11 MHz |
Receiving frequencies |
90 10 frequency banks with up to 10 preset frequencies each |
Deviation |
± 45 kHz |
Frequency stability |
± 0.0005 % |
S/N ratio |
>105 dB |
Modulation method |
FM |
Coverage |
80 m (with line-of-sight) |
Frequency response |
45-18000 Hz |
Audio output |
XLR, bal. 6.3 mm jack, unbal. |
Antenna inputs |
2 x BNC (supply 8 V/150 mA) |
Power supply |
12 V DC, 500 mA |
Power consumption |
12 W |
Dimensions |
205 x 43 x 220 mm Rack installation with 1 U with supplied mounting brackets |
Weight |
1.2 kg |
Type |
True diversity, 1 channel |
Directivity pattern |
UHF 823-832 MHz and 863-865 MHz |
Power supply |
11 MHz |
Current consumption |
90 10 frequency banks with up to 10 preset frequencies each |
Battery life |
± 45 kHz |
Dimensions |
± 0.0005 % |
Weight |
>105 dB |
Receiver:
Microphone:
