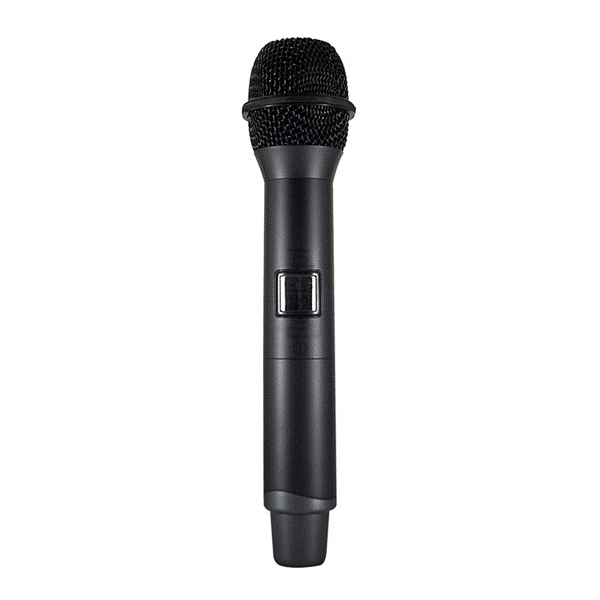

UH-200
Handheld Wireless Microphone
Handheld Wireless Microphone
Gallery:
Details & Specifications:
 |
Home / Audio Equipment / Microphones / UH-200 Handheld Wireless Microphone
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receiver WAM-400
- Infrared interface for easy and error-free synchronization with the --- receiver via infrared signal
- Operation range approx. 80 meters
- OLED display for battery status, frequency and channel
- Mute function
- RF output power Hi/Low adjustable
- Operation via 2 x 1.5 V battery (type AA), not included
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- On/off/mute-switch: On/off/mute-switch
- Polar pattern: Unidirectional
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receiver WAM-400
- Infrared interface for easy and error-free synchronization with the --- receiver via infrared signal
- Operation range approx. 80 meters
- OLED display for battery status, frequency and channel
- Mute function
- RF output power Hi/Low adjustable
- Operation via 2 x 1.5 V battery (type AA), not included
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- On/off/mute-switch: On/off/mute-switch
- Polar pattern: Unidirectional
| Type | Handheld Wireless Microphone |
| Carrier Frequency Range | UHF 823-832 und 863-865 MHz |
| Oscillation | PLL synthesized |
| Harmonic radiation | ＜-63dBm |
| Bandwidth | 32MHz |
| Max.Deviation Range | ±45KHz |
| Microphone Element | Cardioid Dynamic / Cardioid Condenser |
| RF Power Output | 15mW |
| Battery | AA X 2 |
| Current Consumption | 90mA ( typical) |
| Battery Current / Life | Approximately 8 hours |
| Dimension | 52(Φ) X 252 (L) |
| Weight | 208g ( w/o battery) |
