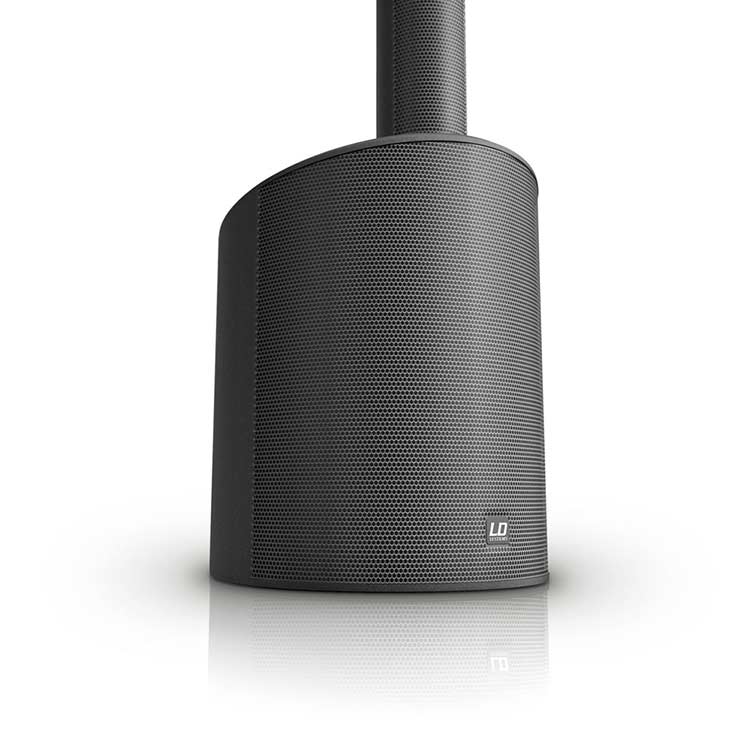

LD Systems - MAUI 5 MIX
ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH
Gallery:

Price: 1723.00
Details & Specifications:


MAUI 5 MIX
ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH

Product number: LDMAUI5
Product type: PA system
Type: active
Colour: black
Max. SPL (continuous): 114dB
Max. SPL (peak): 120dB
Frequency response: 50 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 1985mm
Weight: 11.3kg
Other features: Bluetooth, 4 channel mixer, DSP-based signal processing

Woofer characteristics
Low/mid driver dimensions: 8"
Low/mid driver dimensions (mm): 203.2mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2"
Woofer voice coil (mm): 50.8mm
Cabinet construction: vented
Cabinet construction: ABS plastic
Dimensions Subwoofer (W x H x D): 305 x 405 x 395mm

Mid/Hi System
Midrange size: 4 x 3"
Midrange size: 4 x 76.2mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: ABS plastic
Mid/Hi system width: 82mm
Mid/Hi system height: 535mm
Mid/Hi system depth: 105mm

Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 200W
Amplifier Output System (Peak): 800W
Protection circuits: over-current, short circuit, DSP-based multiband limiter, thermal overload
Cooling: Convection

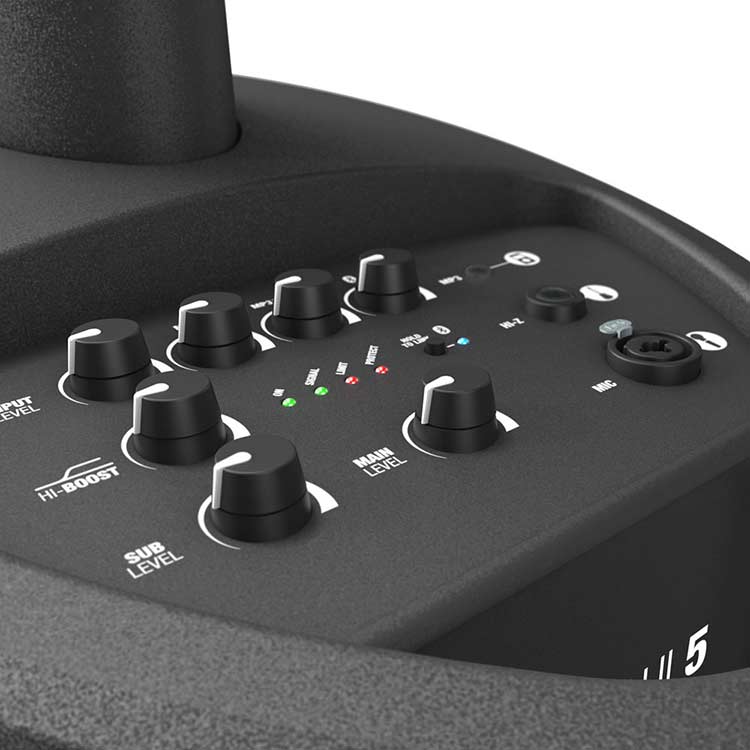

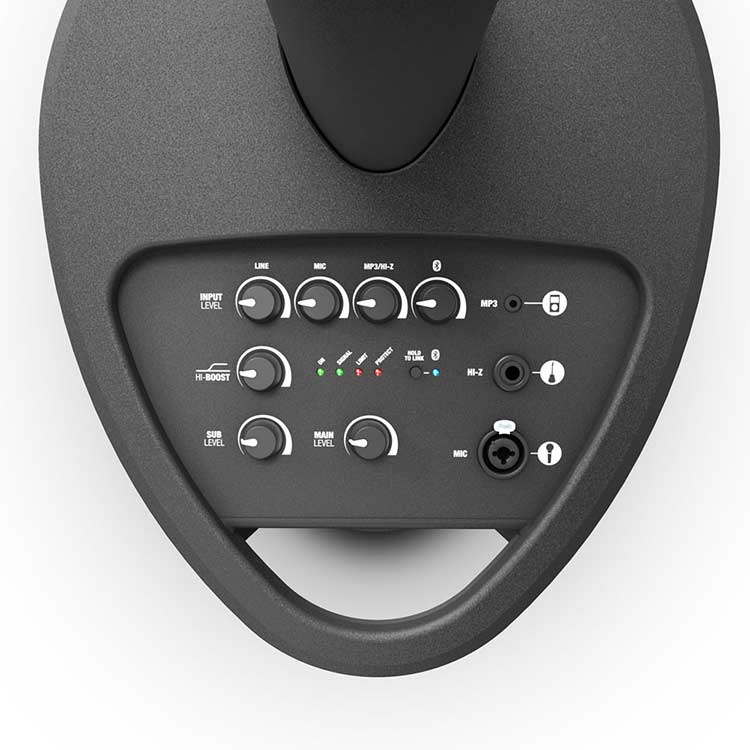

Controls: MP3 / Hi-Z Level, sub level, Mic Level, BT Pairing, Line Level, BT level, Main Level
Indicators: signal, protect (protection circuit engaged), on, limit
Operating voltage: Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz

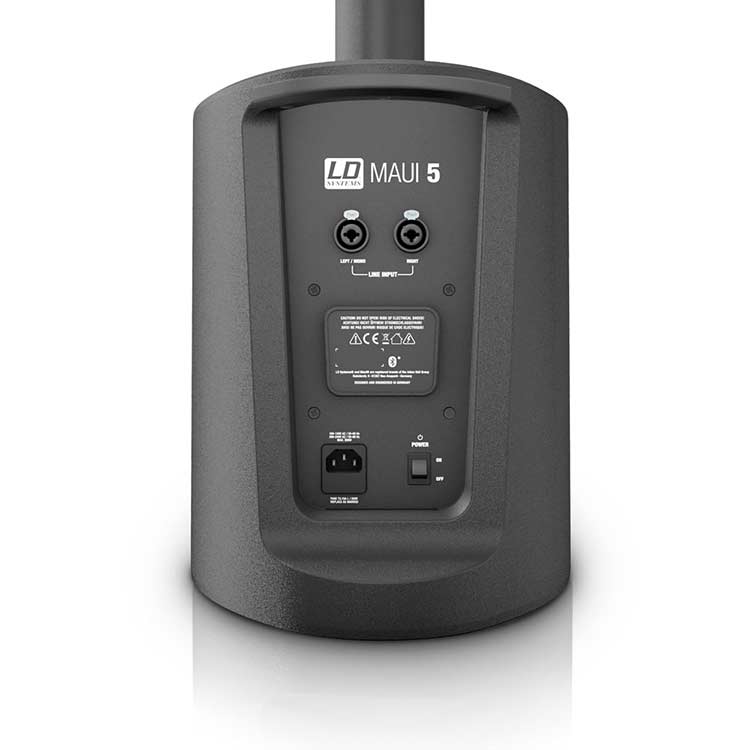

Line inputs: 2 x stereo
Line input connectors RCA, 6.3 mm Jack, XLR
Mic inputs: 1, XLR, 6.3 mm Jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
