LD Systems - MAUI 28 G2
COMPACT COLUMN PA SYSTEM WITH MIXER
Gallery:

Price: 3719.00
Details & Specifications:


Product number: LDMAUI28G2
Product type: PA Complete Systems
Type: active
Colour: black
Max. SPL (peak): 126dB
Frequency response: 45 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 2059mm
Weight: 30.9kg

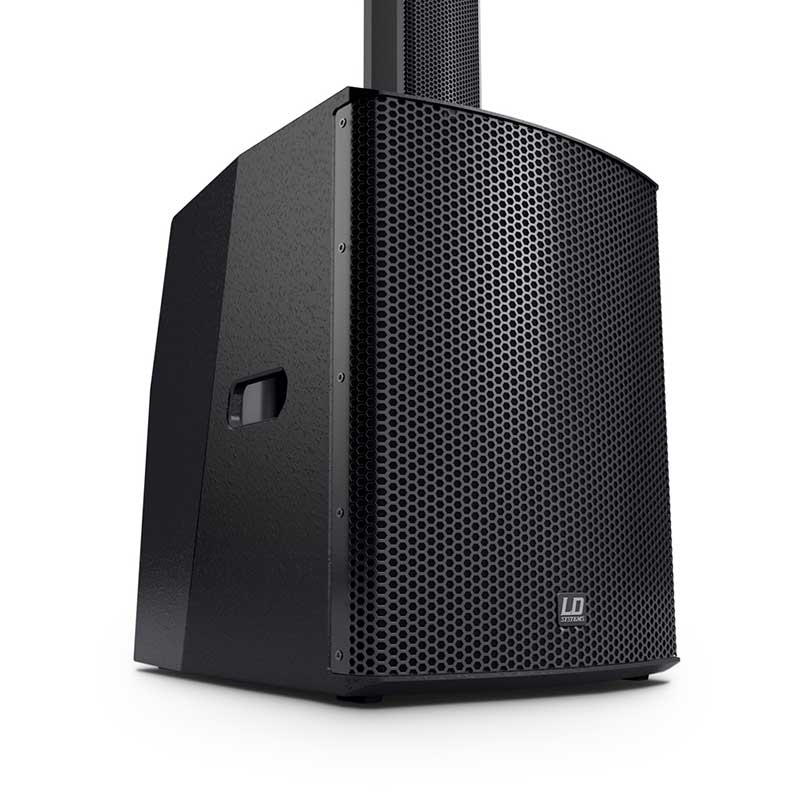

Subwoofer
Low/mid driver dimensions: 2 x 8"
Low/mid driver dimensions (mm): 2 x 203mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer size: 2 x 203mm
Woofer voice coil: 2"
Cabinet construction: vented
Cabinet construction: 15 mm Plywood
Cabinet surface: texture paint
Dimensions Subwoofer (W x H x D): 370 x 484 x 480mm
Subwoofer weight: 19.7kg

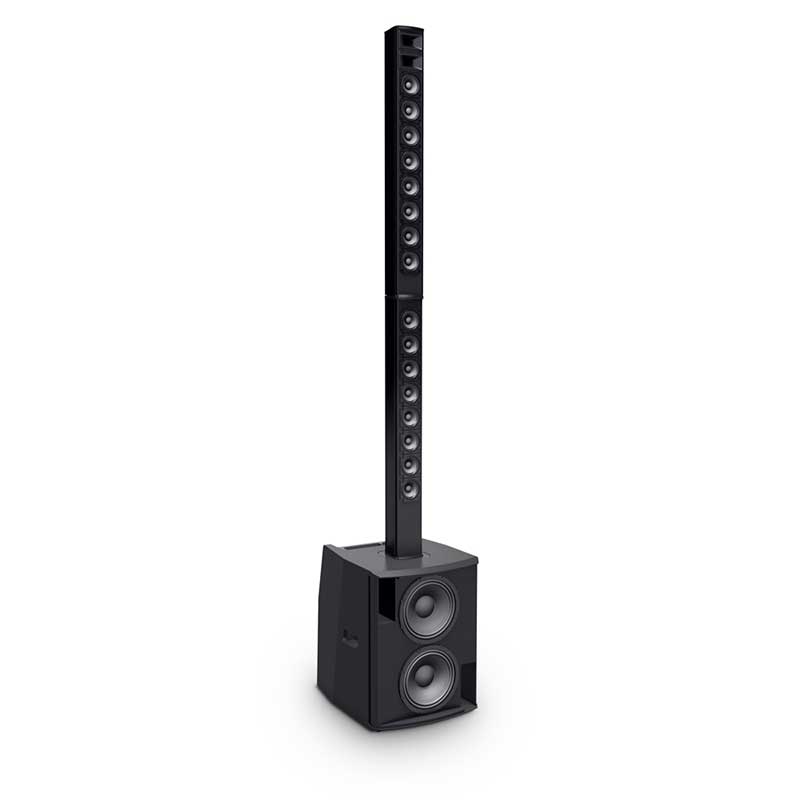

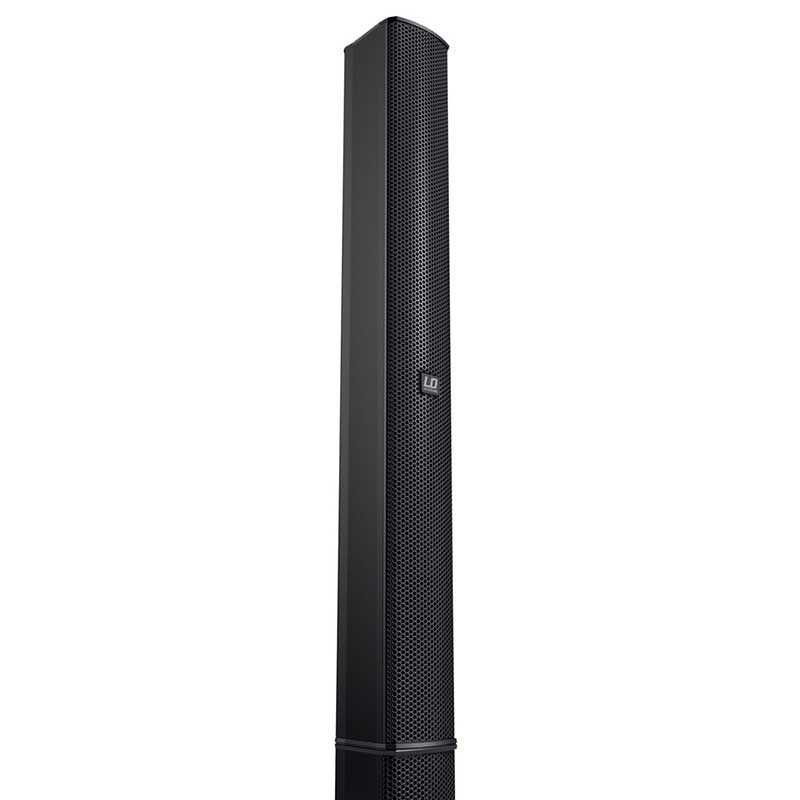

Mid/Hi System
Midrange size: 16 x 3"
Midrange size: 16 x 76.2mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 96mm
Mid/Hi system height: 780 / 795mm
Mid/Hi system depth: 104mm
Mid/Hi system weight: 5.6 / 5.6kg

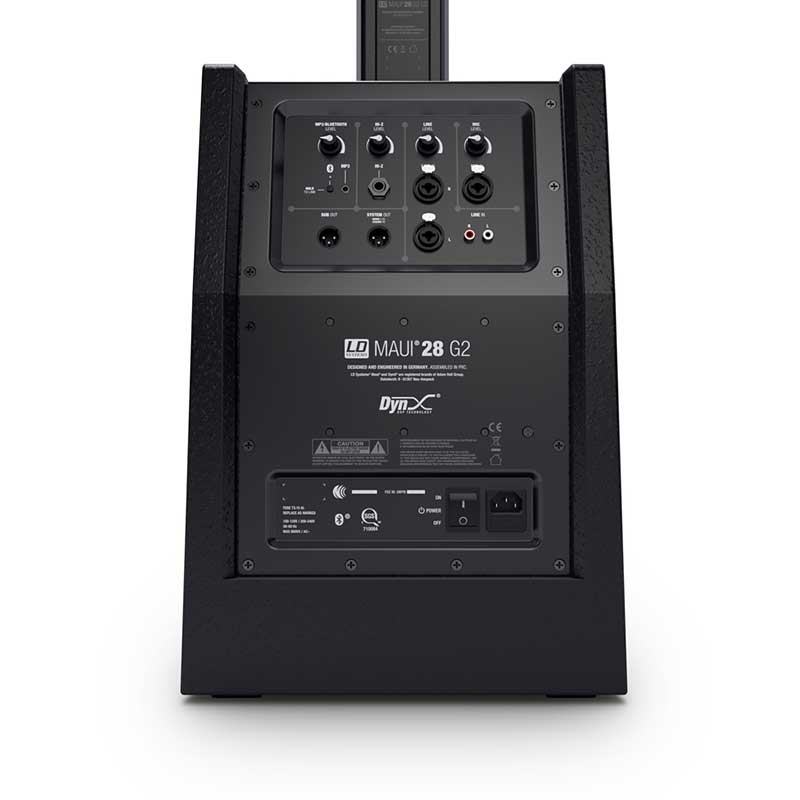

Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 1000W
Amplifier Output System (Peak): 2000W
Protection circuits: DC protection, short circuit, thermal overload, Multiband limiter
Cooling: Convection

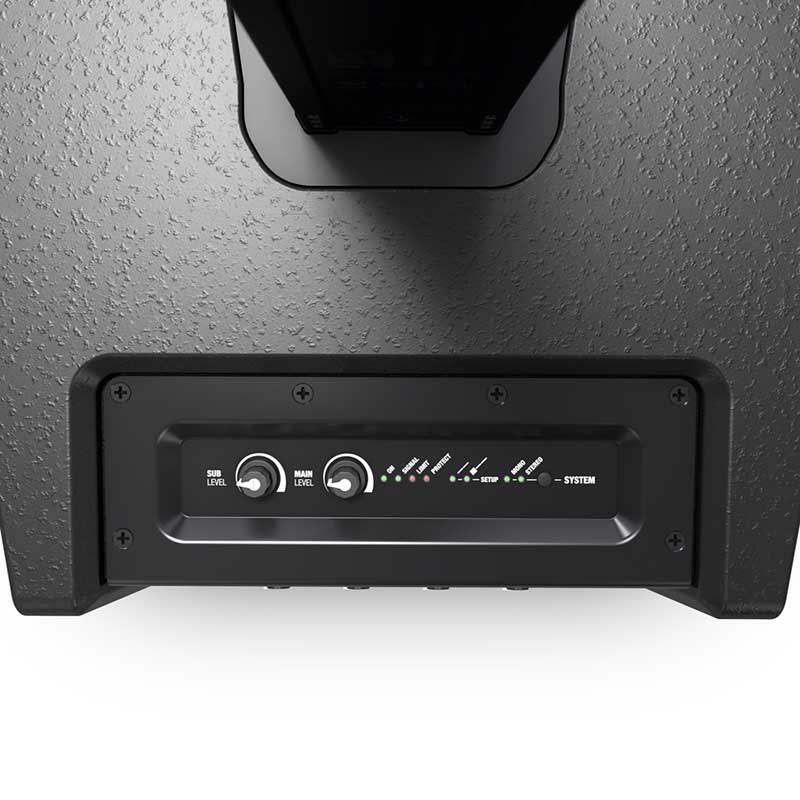

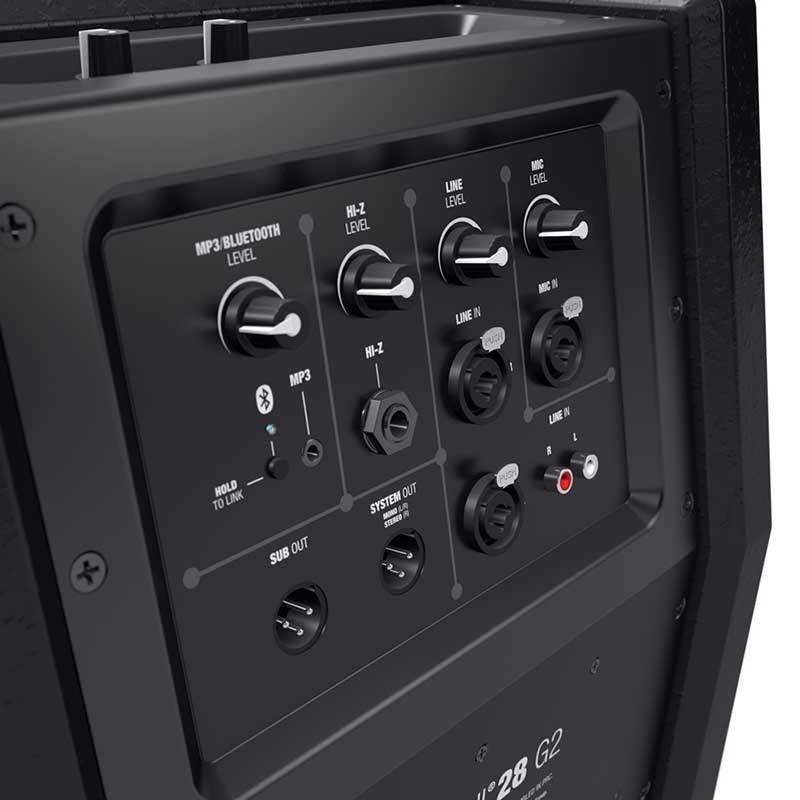

Controls: Mono/stereo switch, Bluetooth switch, MP3/Bluetooth Level, Hi-Z Level, Main level, Power, Line
level, Sub level
Indicators: stereo, On, Limit, Signal, Setup, Protect (protection circuit engaged), mono
Power connector: IEC power cable (included)
Operating voltage: Volex mains socket, transformer, 220 V AC - 240 V AC, 50-60 Hz
Power consumption Off / On / Max.: 0/11/600W

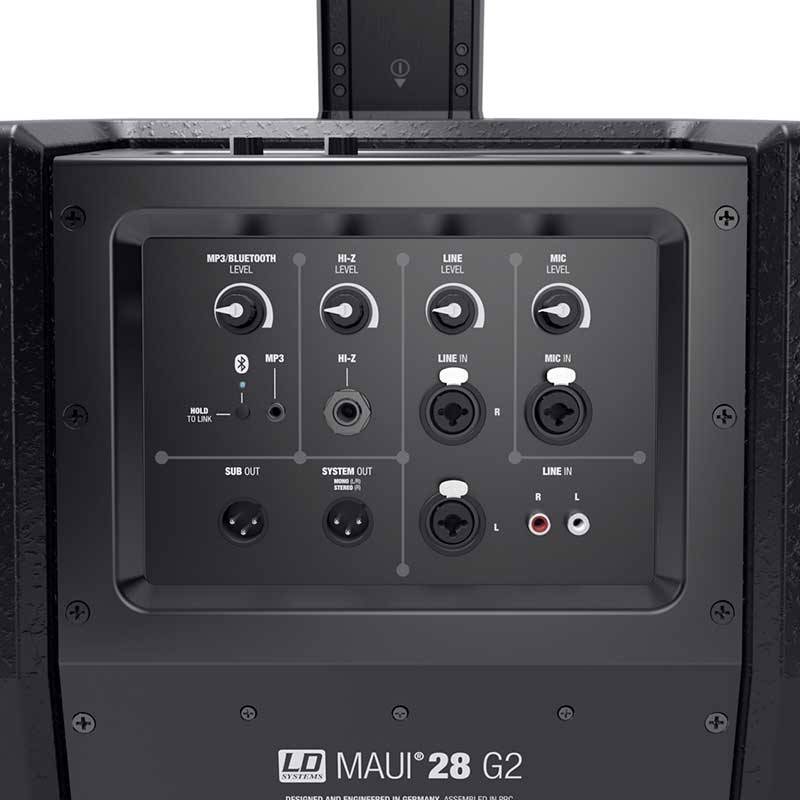

Line inputs: 2 x stereo
Line input connectors RCA, XLR, 6.3 mm Jack
Line outputs: 2 (1x System Out, 1x Sub Out)
Line output connectors: XLR
Mic inputs: 1, XLR/6.3 mm jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin

DSP characteristics
Bit depth AD/DA converter: 24bit
Internal sampling frequency: 48kHz
Signal/noise ratio: 100dB


MAUI 28 G2
COMPACT COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH BLACK
