179014 Power Dynamics PD632BP
Bodypack Microphone for PD632 series mic system
Bodypack Microphone for PD632 series mic system
Gallery:
Details & Specifications:
| Input Connections | 3.5 mm jack |
| Output Connections | XLR (3-pin) |
| Frequency Range | 863.000 - 865.000 MHz |
| Frequency Response | 60 - 18.000 Hz |
| Frequency stability | 0.0015% |
| RF Output | <10mW |
| Signal-to-noise ratio | >97dB |
| THD | <1% |
| Batteries | 3V (2x AA) |
| Power Supply | 100-240VAC 50/60Hz (12V Adapter) |
| Dimensions: Receiver | 75 x 60 x 23mm |
| Dimensions: Microphone | 51 x 250mm |
| Dimensions: Body Pack | 75 x 60 x 23mm |
| Weight (kg) | 0.14 |
| Weight: Microphone | 0.4 |
| Weight: Body Pack | 0.2 |
 |
 |
 |
 |
 |
Home / Audio Equipment / Microphones / 179014 Power Dynamics PD632BP Bodypack Microphone

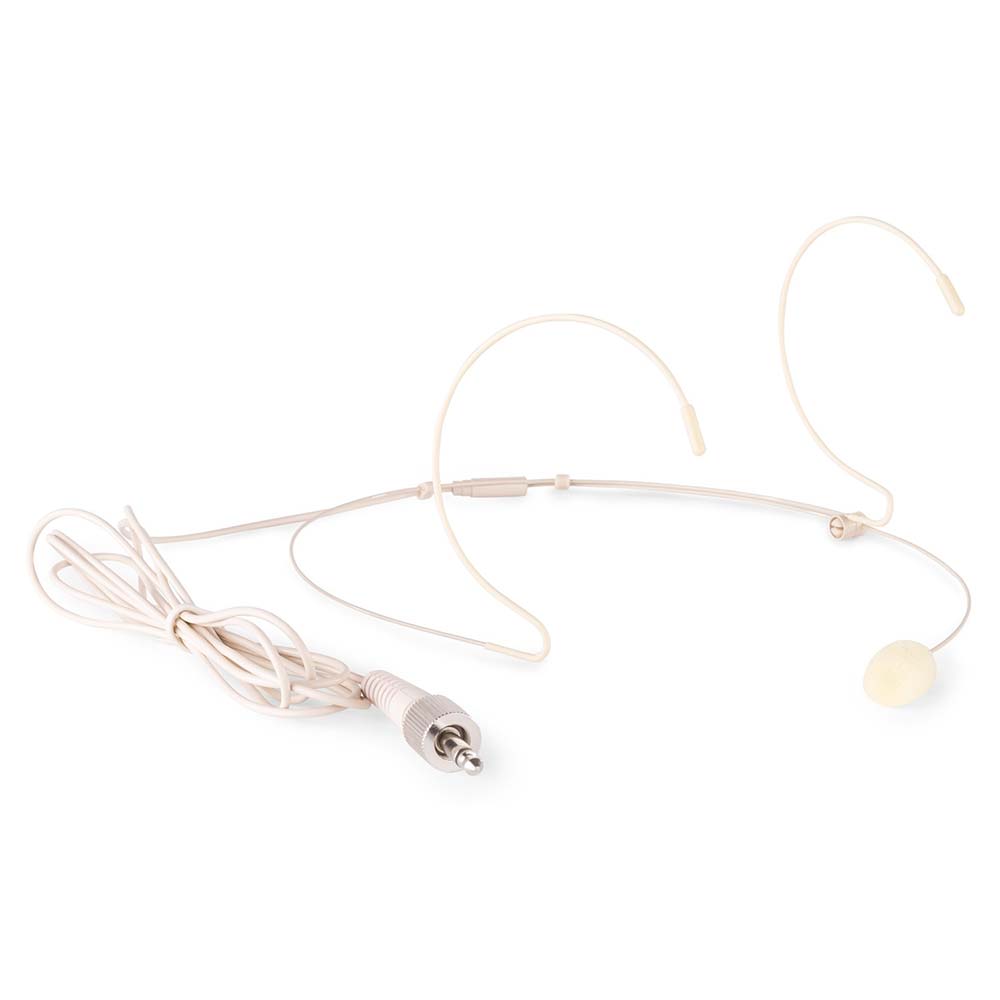

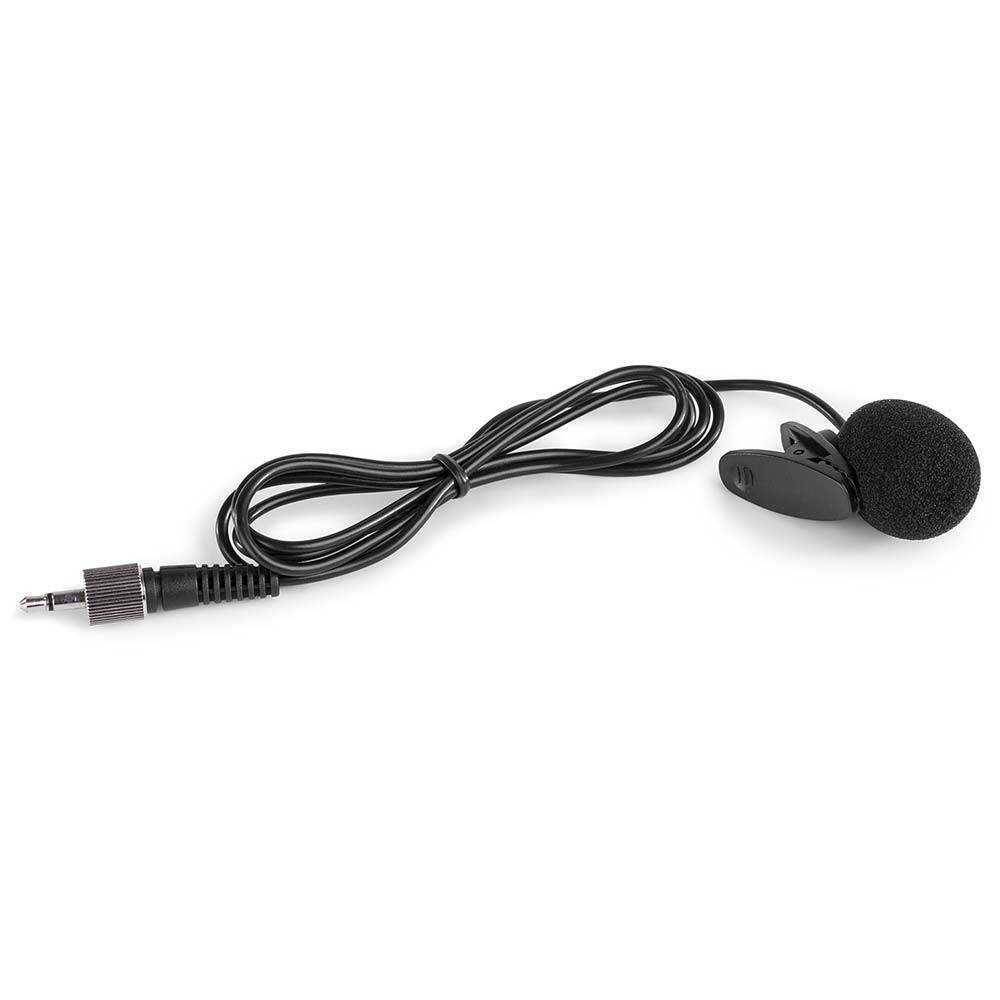

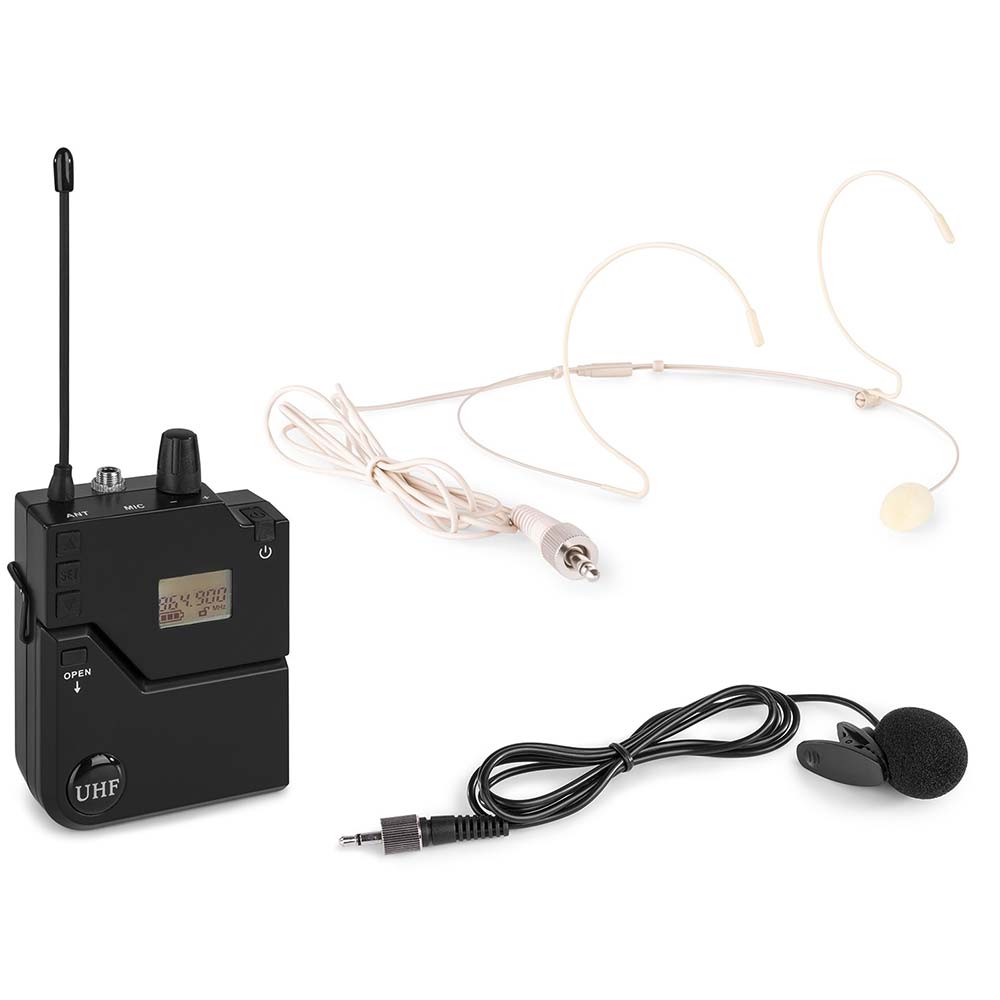

Bodypack transmitter for PD632 wireless UHF microphone systems. Equipped with IR learning system for channel selection. Ideal for handsfree applications, vocals, presentations etc. Including tie-clip and skin-colour headset.
- 20 Selectable UHF channels
- Bodypack with mute
- IR data transmission for channel selection
- Microphone connection using 3,5mm screwable jack

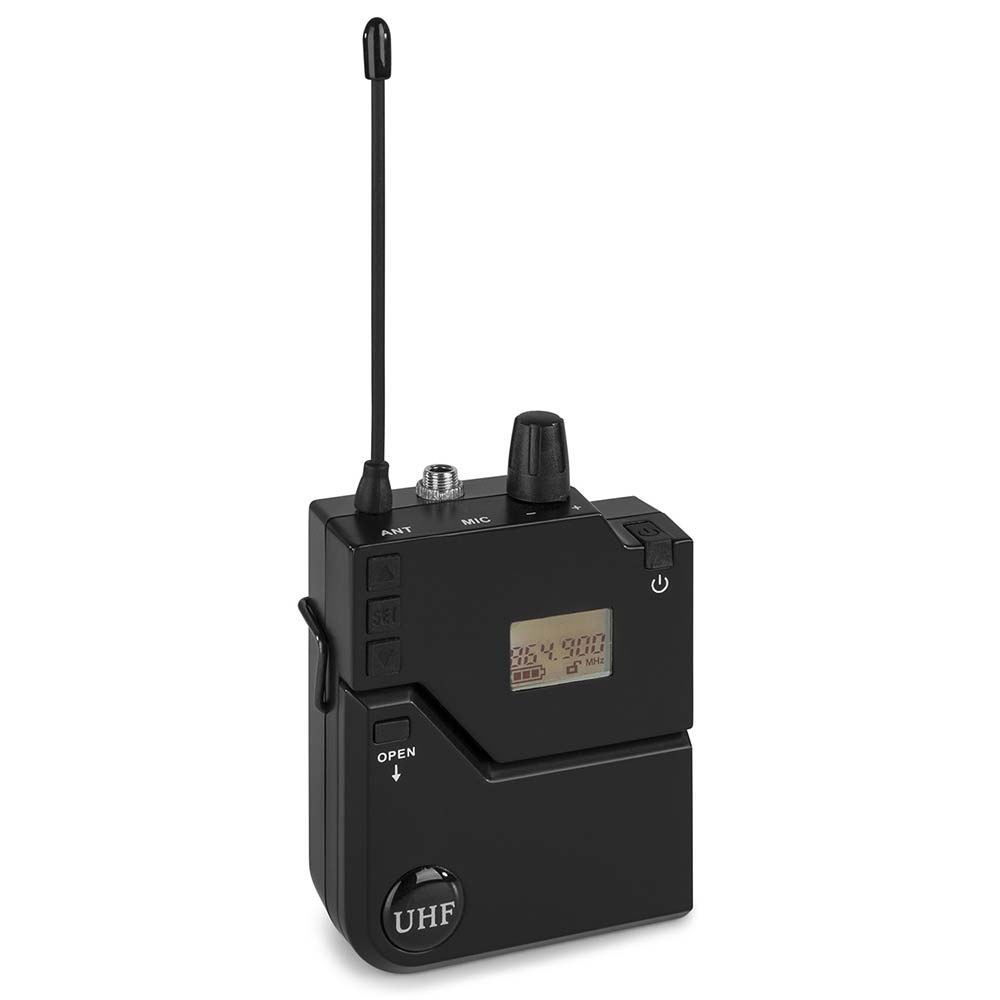

- Transmitter with display showing the frequency and battery low indication
- Bodypack with mute
- IR data transmission for channel selection
- Microphone connection using 3,5mm screwable jack
- Transmitter with display showing the frequency and battery low indication
